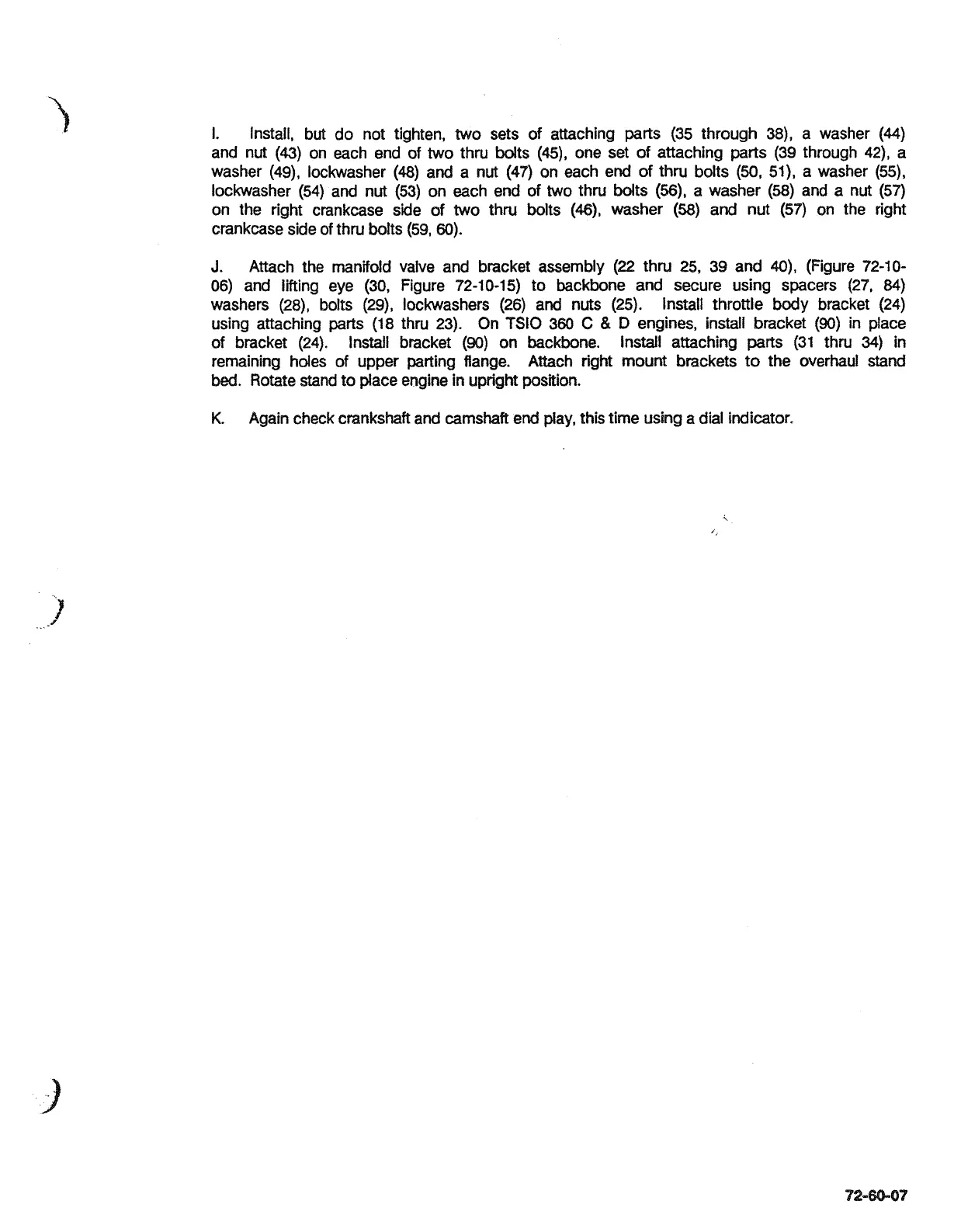

I.
Install, but do not tighten, two sets of attaching parts (35 through 38), a washer
(44)
and nut
(43)
on each end of two thru bolts (45), one set of attaching parts (39 through 42), a
washer
(49), lockwasher
(48)
and a nut (47) on each end of thru bolts
(50,
51), a washer (55),
lockwasher (54) and nut (53) on each end of two thru bolts
(S),
a washer
(58)
and a nut (57)
on the right crankcase side of two thru bolts
(46),
washer
(58)
and nut (57) on the right
crankcase side of thru bolts
(59,60).
J.
Attach the manifold valve and bracket assembly
(22
thru 25,
39
and
a),
(Figure 72-10-
06) and lifting eye
(30,
Figure 72-10-15) to backbone
and
secure using spacers (27,
84)
washers (28), bolts (29)' lockwashers (26) and nuts (25). lnstall throttle body bracket (24)
using attaching parts (18 thru 23). On
TSlO
360
C
&
D
engines, install bracket
(90)
in place
of bracket (24). lnstall bracket
(90)
on backbone.
Install attaching parts (31 thru
34)
in
remaining holes of upper parting flange. Attach right mount brackets to the overhaul stand
bed.
Rotate
stand
to place engine in upright position.
K.
Again check crankshaft and camshaft
end
piay, this time using a dial indicator.
