SeaBat Sonar UI - User Manual Appendix Raw Data Recording (RDR)



103

Step

Action

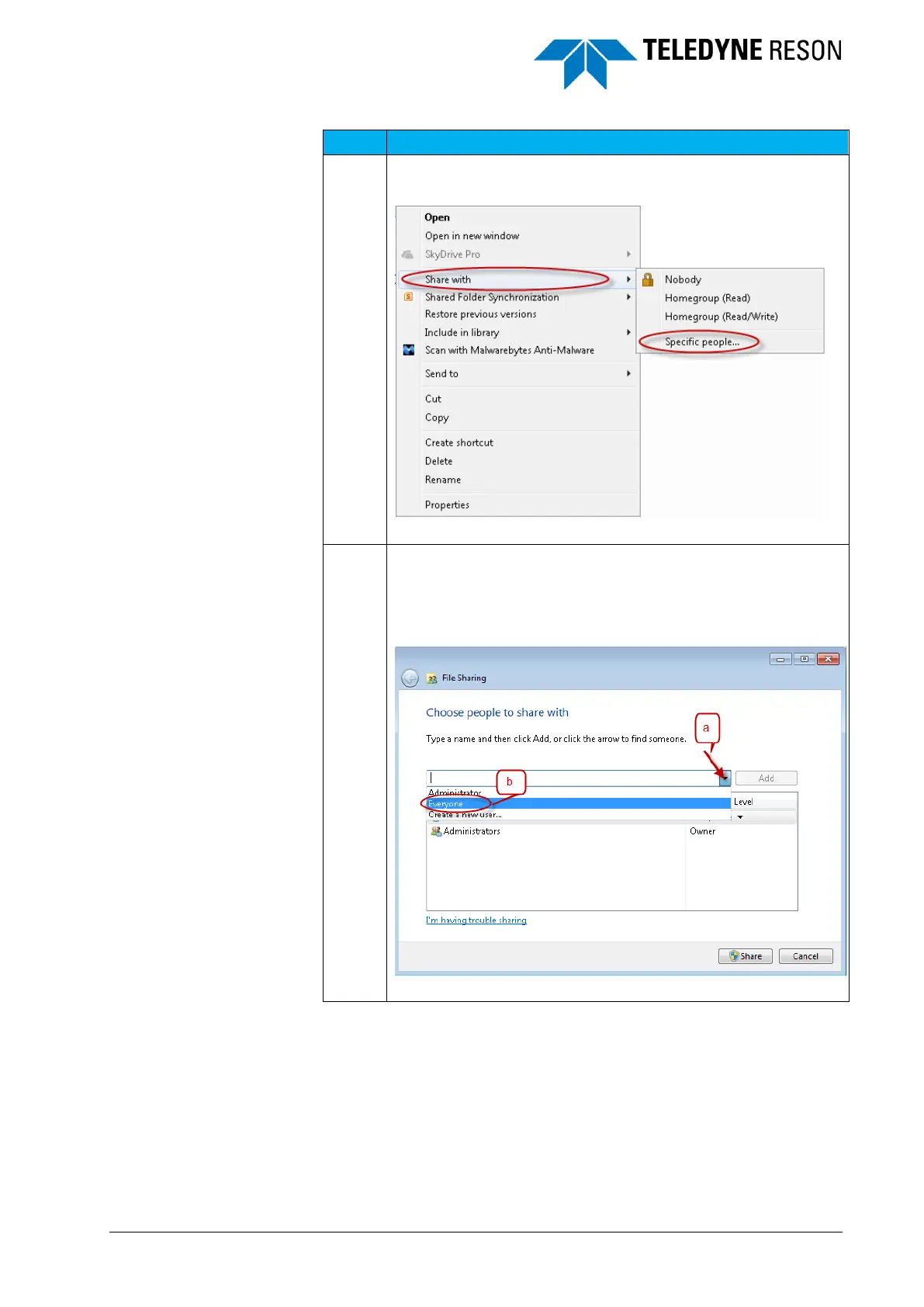

Right click on this folder and click ‘Share with’ from the context

menu, followed by ‘Specific people.’

In the file sharing dialog box.

a. Click the arrow for a drop down box.

b. Select ‘Everyone’. If Everyone is not listed you can also

just type the word ‘everyone’ in the field.
