16 Fire Panel IRIS - Installation Manual
2.3. Network connection diagram
It is possible to connect some individual IRIS fire panels in a network by means of a HUB and TCP/IP proto-
col – Figure 21. A supervisor PC, which could follow the current status of the individual fire panels, monitors
the current panel state. As an option, it is possible connecting of a modem, which allows connecting of the
supervisor PC with other remote devices (in other cities, countries, etc.).

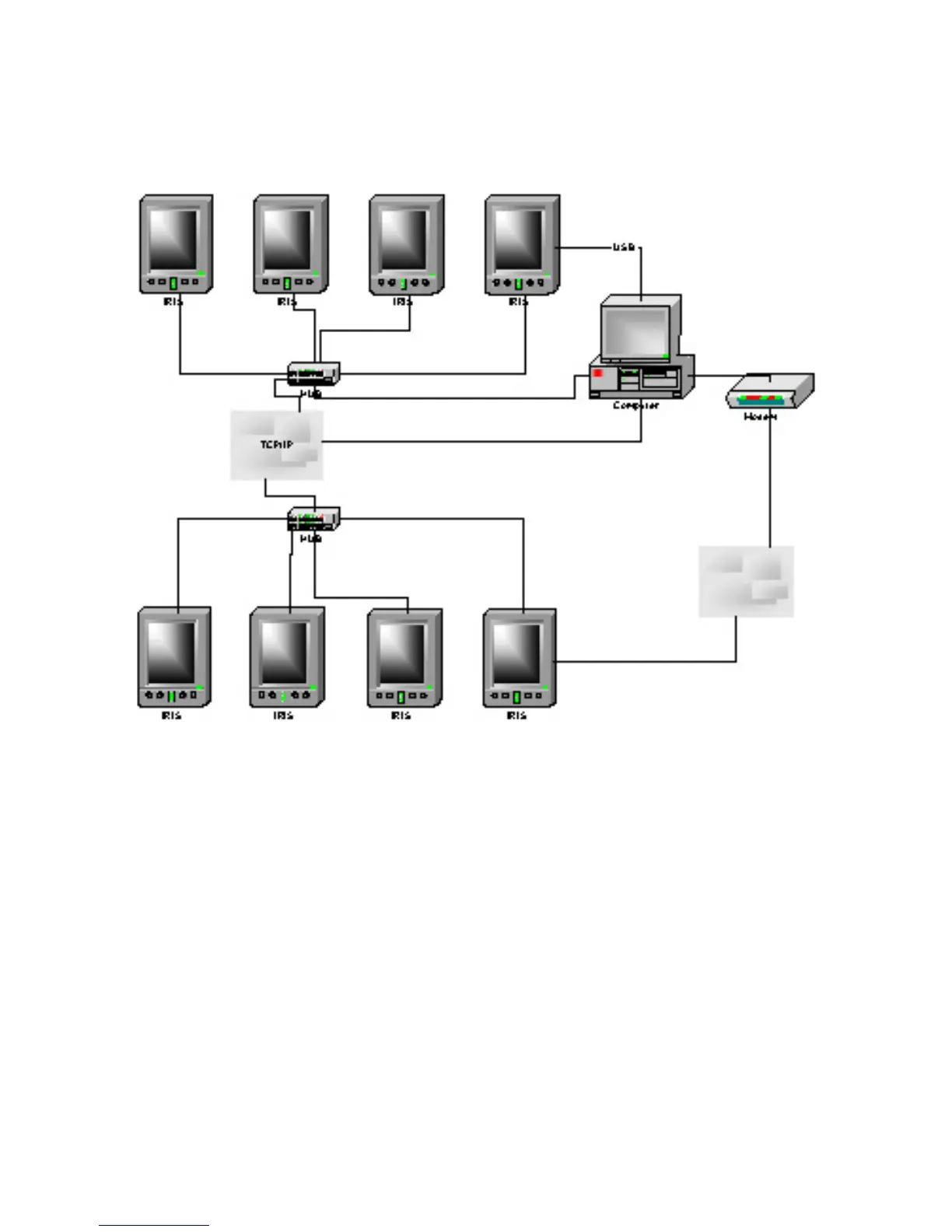

Figure 21.
