6 Fire Panel IRIS - Installation Manual
2. INSTALLATION
2.1 Mounting
• The panel must be installed in a clean dry place and must not be subjected to impact orvibrations (Figure 1).
It must be situated far form heating appliances. The temperature must be within –5ºС and + 50ºC. The fire
panel is not water-proof!
• Unscrew the two secret bolts situated from above and from bellow the metal box with the help of the Special
Tool in the set - see Figure 2.
• Remove the front panel as first disconnect the flat-cable for panel indication. After that unscrew the hinge
bolts on the side of the front panel - Figure 3. (Note: You can unscrew and the hinge bolts on the side of the
metal box. The special here is the presence of two plastic pads situated under the hinges. The pads have to
be returned back under the hinges at closing the front pane.)
• Choose inlets for the cables, and put from the ptastic taps on those ones which you will not use.

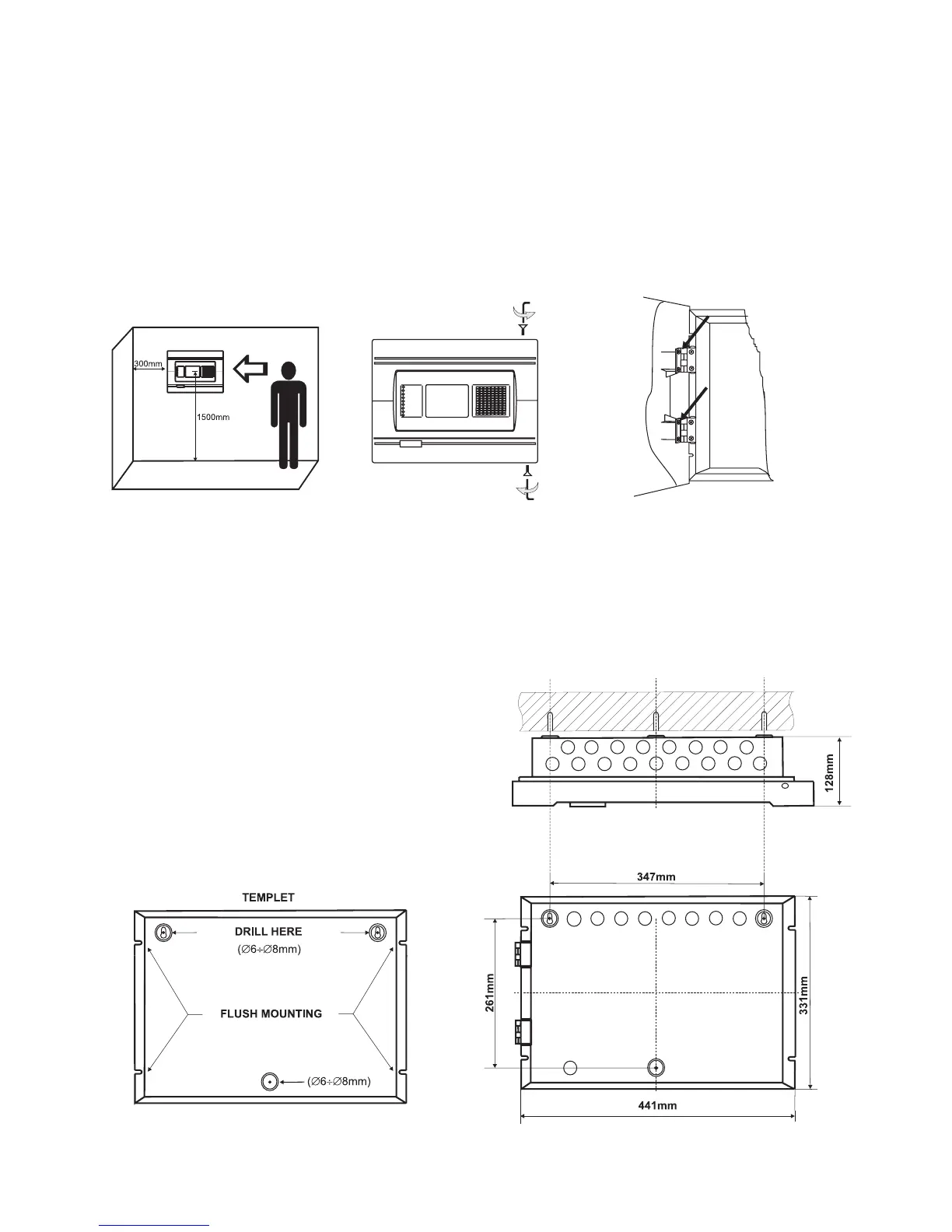

Figure 1 Figure 2 Figure 3
2.1.1 Wall Mounting
• Use the templete in the set to fix the mounting holes of the metal box on the wall - see Figure 4.
• Drill holes (Ø6-8mm) on the wall and fix the metal
box - see Fig 5.
• Route the external cables onto the back box, make
off connection glands etc., BUT DO NOT make any
connections at this stage. ENTER THE MAINS CA-
BLE THROUGH ITS OWN CABLE ENTRY POINT
AND KEEP MAINS WIRING AWAY FROM SYS-
TEM AND OTHER LOW VOLTAGE WIRING.
• Connect the mains supply and earth to the main
terminal block BUT DO NOT apply the main electri-
cal supply at this stage.
• Position the accumulator battery in an upright
position and fix the metal clamp.
Figure 4 Figure 5
