Fire Panel IRIS - Installation Manual 5
Battery Power Supply
- Voltage output: Ucharge=13,8V
- Current output: Imax: 2A
- Number of the Batteries: 1, 12v/ 18Ah
- Battery Size: 167x181x76mm

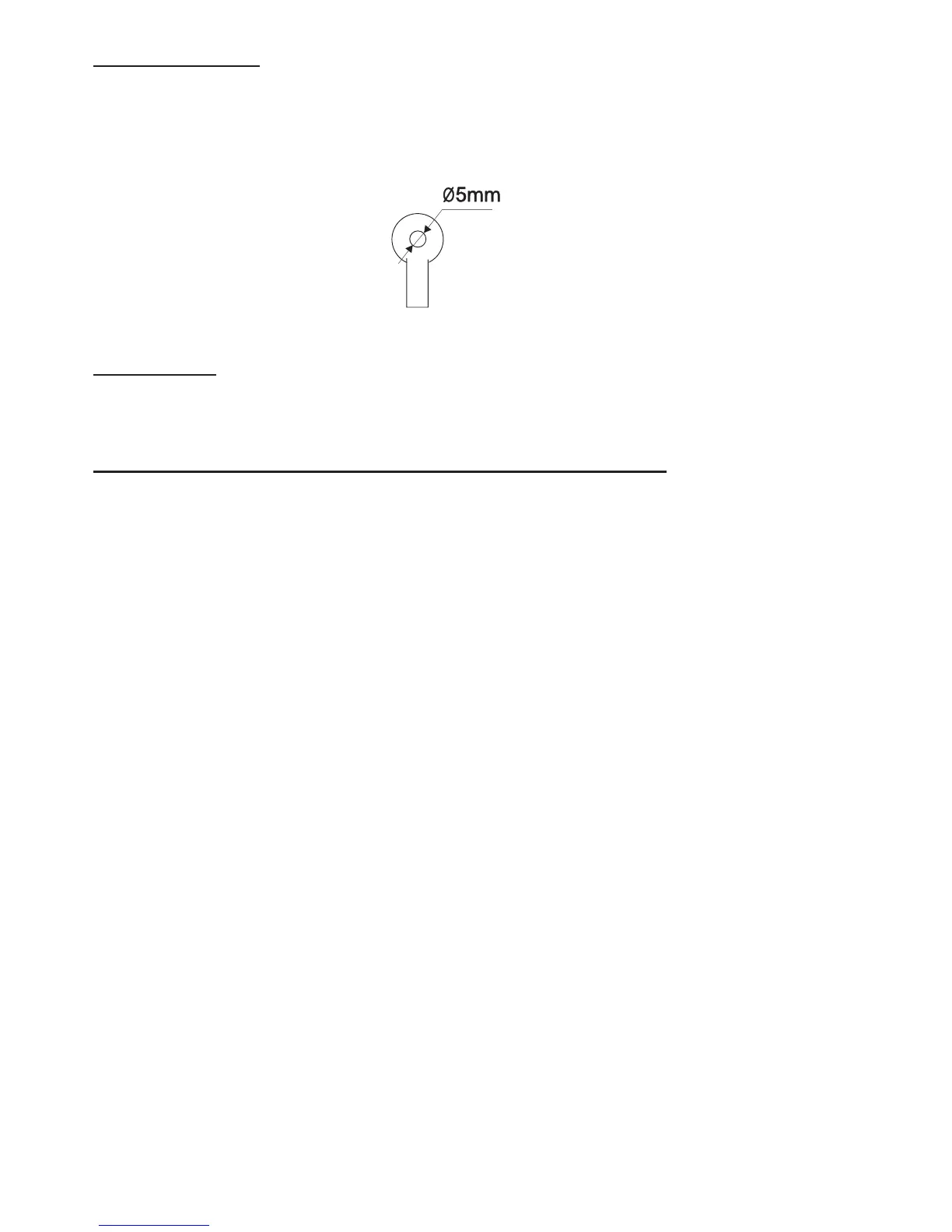

- Type of the Battery connection: with a flat terminal lug - Ø5mm (M5)
List of the fuses
- General Power Supply: 2A, Slow Type
- Outputs: Sounder, Fire, Fault and Fire Protection - 0,5A, Self-recovering Type
- Battery: 10A, Automobile Type
List of the additional components, included in the set of the fire panel IRIS:
1. Fuse, Automobile Type, 10A - 1
2. Fuse 2A, Slow Type, for the Power Supply - 1
3. Balansing resistors, 10K - 4
4. Plastic taps - 21
5. Cable bandages - 2
6. Special Tool for unscrewing the secret bolts - 1
!
The panel should be installed by qualified specialists only.
The electronic components of the panel are vulnerable to electrostatic discharge.
Never add or turn off components which are being power supplied.
