3.5.1 Type of output
NONE
PERIPHERY_DEVICE
LOOP_DEVICE
NETWORK
3.5.2 Parameters
Depending on the type of output, the parameters can be as follows:
PERIPHERY_DEVICE
• The number of the periphery device and its output number.
LOOP_DEVICE
• The number of the loop device, the device address and whether it concerns a module or a detec
tor. It is possible to enter and only device, which is output.
NETWORK
• Number of the panel and number of the input to which the output will be connected.
3.5.3 Output Delay
This could be within 0–600 sec.
3.5.4 Output Active Status (Polarity)
INVERTED – the output is set at ON, when the result of the logical function is OFF.
NORMAL – the output is set at ON, when the result of the logical function is ON.
3.5.5 Pulse Type
CONTINUOUS – the output signal is continuous
PULSED – the output signal is a pulse signal (3 sec./ 3 sec.)
ONE PULSE – the output signal is a single pulse signal (5 sec)
ONE PULSE must be used in the case of ACTION type activating input or else the activating
input must be LATCHED or the output LATCHED.
3.5.6 Menu for selection of the inputs, controlling the outputs

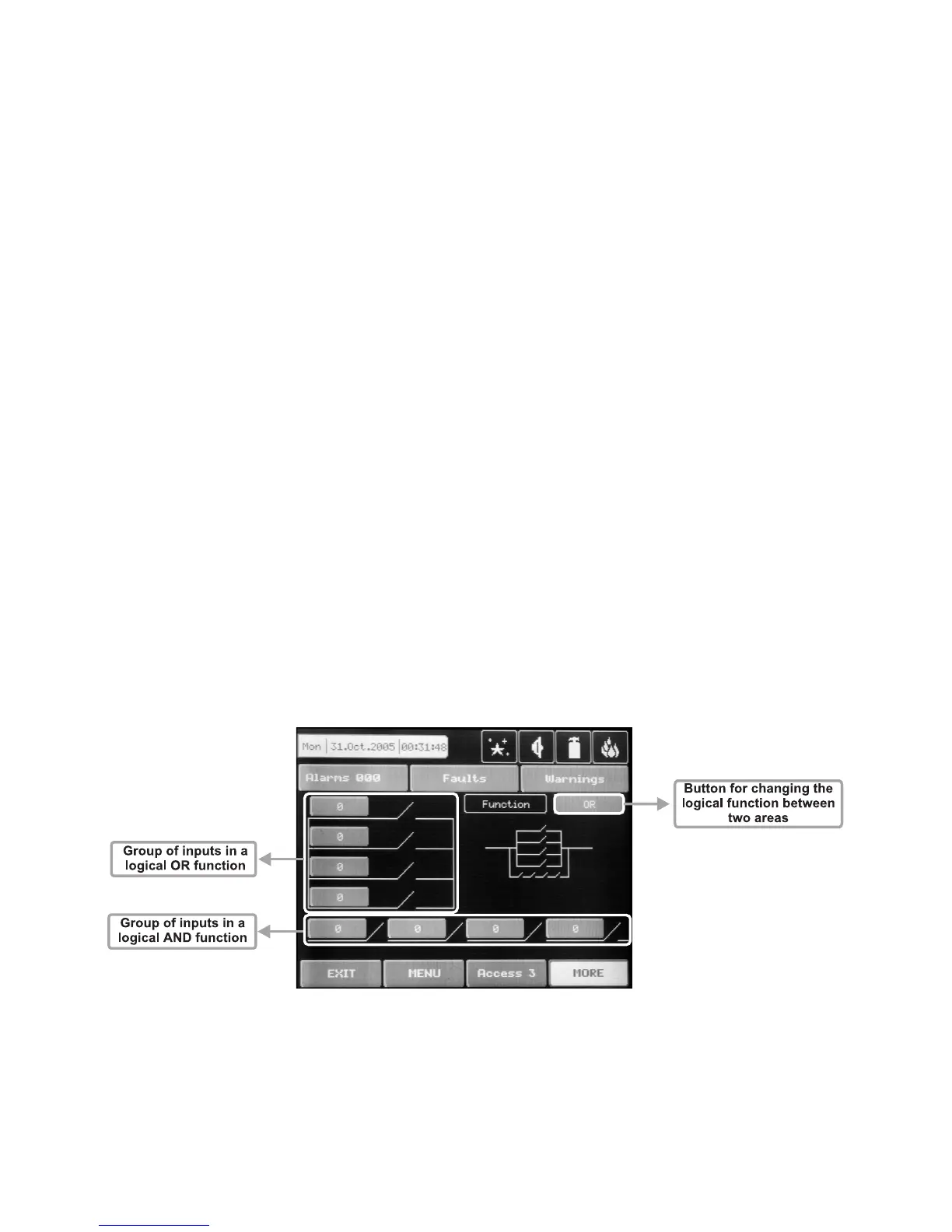

Fig. Screen 15
3.5.7 Mode
LATCHED – deleted only after RESET.
UNLATCHED – monitors the status.
