38 Fire Panel IRIS - Installation Manual
4.8.2 Zone disabling
The user/installer could first look at the current status of the loop devices by choosing “View” button situated
next to the “Zones” button – see Fig. Screen 26. On the screen of the panel is displayed the current status of
the loop devices programmed earlier in the system (see part Programming, §3.3 Zones) – Fig. Screen 28.

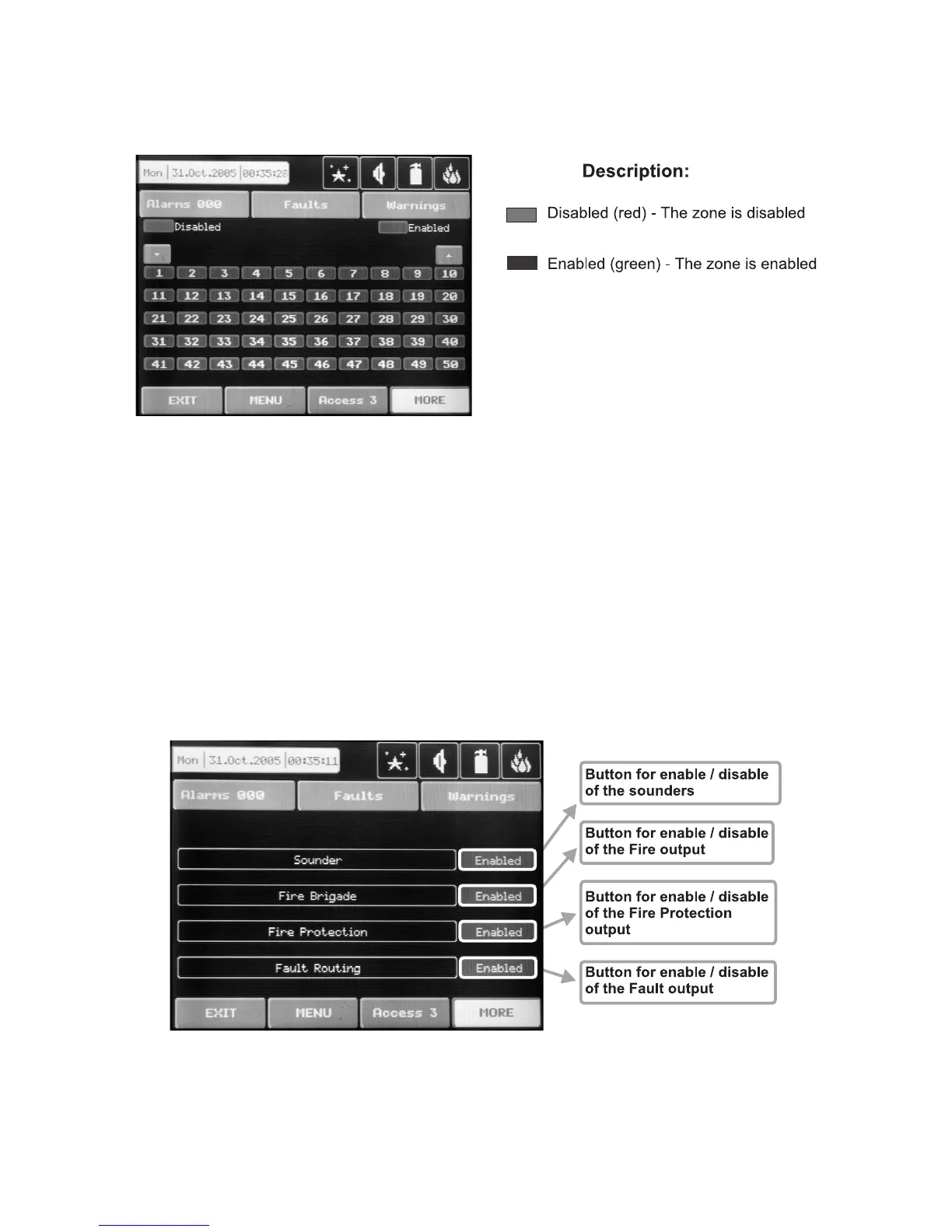

Fig. Screen 28
From the screen for the current status of the zones the user/installer can introduce new settings as choose
the button with the number of zone 1,2,3…50. With the buttons ▼▲ is possible to be viewed and the other
zones in the configuration of the system, with number over 50. By choosing a button with a zone number the
user/installer moves to menu for setting of the parameters of the respective zone – see Fig. Screen 12, part
Programming.
Note: From the disabling menu you can directly enter in the zone configuration menu (Fig. Screen 12)
as choose “Zones” button (Fig. Screen 26).
4.8.3 Outputs disabling
From the menu for disabling introduction – Fig. Screen 26, the user/installer can disable or enable the moni-
tored outputs of the IRIS fire panel – Sounder, Fire Brigade, Fire Protection and Fire Routing – Fig. Screen 29.
Fig. Screen 29.
4.9 Software version
By choosing “Software Rev” button from the general Maintenance Menu, in a separate screen you can see
the last version of the used foftware.
