Fire Panel IRIS - Installation Manual 7
2.1.2 Flush Mounting
• Analogue-addressable fire panel IRIS is provided for flush mounting. In the set of the panel are included
two special hinges used for building-in the metal box of the panel in gypsum plaster walls with thickness up
to 25mm.
• Use given on Figure 6 dimentions to outline and to cut the mounting hole in the gypsum plaster wall.
• Fix the hinges on the back side of the gypsum plaster wall with suitable bolts, as shown on Figure 7, Posi-
tion 1.
• Route the external cables onto the back box, make off connection glands etc., BUT DO NOT make any con-
nections at this stage. ENTER THE MAINS CABLE THROUGH ITS OWN CABLE ENTRY POINT AND KEEP
MAINS WIRING AWAY FROM SYSTEM AND OTHER LOW VOLTAGE WIRING.
• Place the metal box in the mounting hole and fix it with suitable bolts - Figure 7, Position 2.
• Connect the mains supply and earth to the main terminal block BUT DO NOT apply the main electrical sup-
ply at this stage.
• Position the accumulator battery in an upright position and fix the metal clamp.

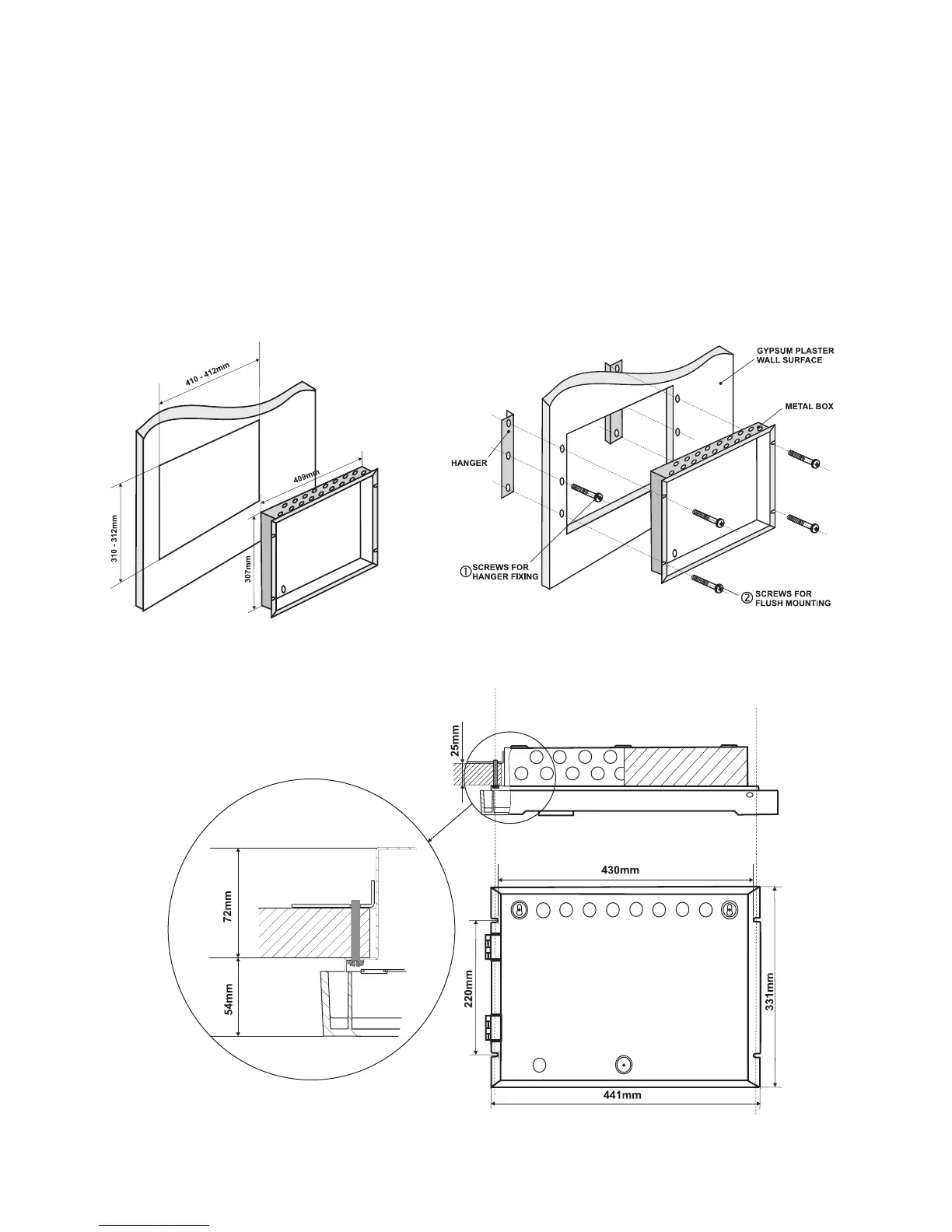

Figure 6. Dimentions of the metal box Figure 7. Action secuence for flush
and the mountig hole. mounting.
Figure 8. Flush mounting holes. Main view of the fix to the wall hinge and the bolts
supporting the metal box.
