Fire Panel IRIS - Installation Manual 45
5.10.2 Loop devices disabling

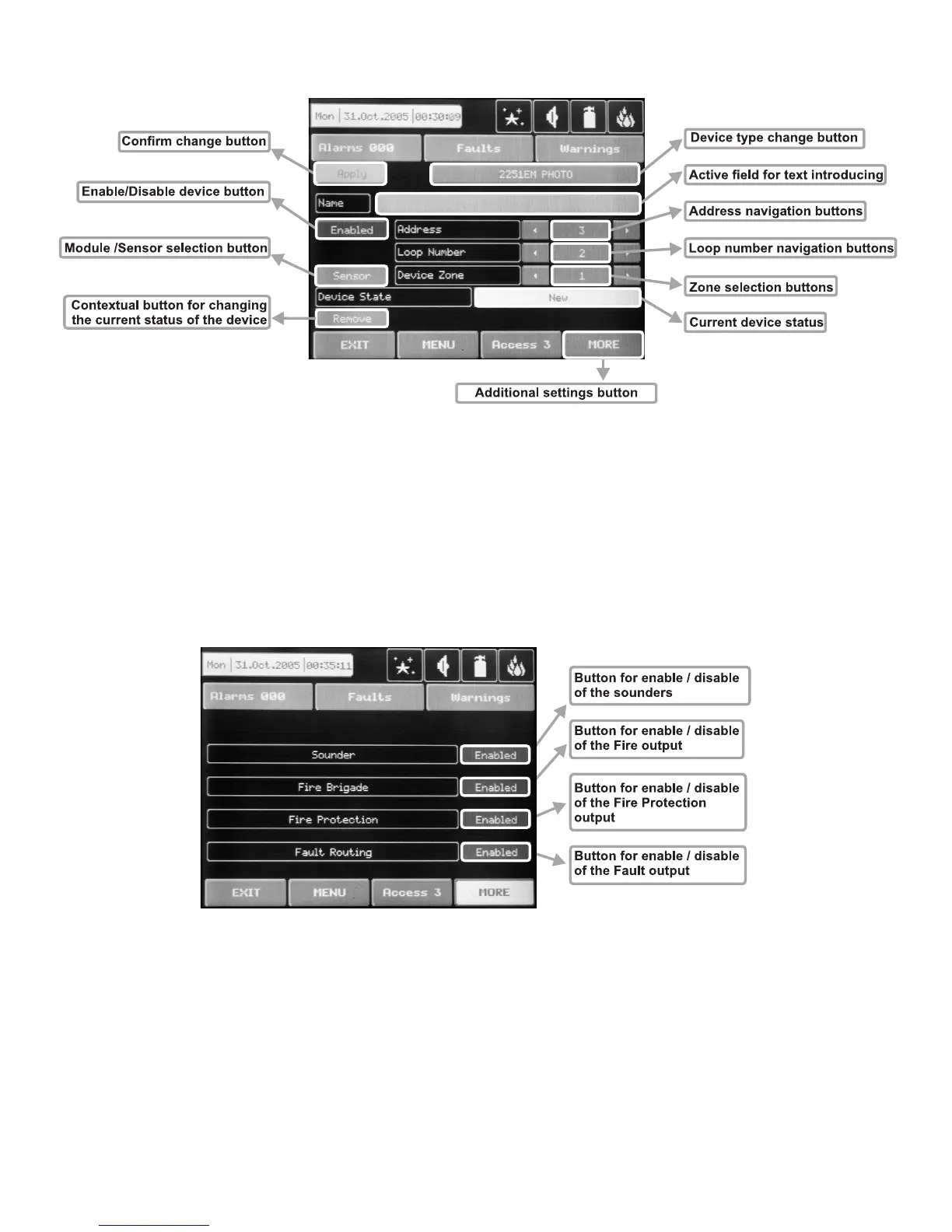

Fig. Screen 37
In the case of a disabled device, the panel generates a “Device Disabled” error message and the “Disable”
and “General Fault” LED-s are activated. Any disabled device will not generate messages to the panel. In
the case of disabled devices associated with a given zone, where it has passed into Normal mode, and of all
devices without 1 if the zone is in “2Devices” mode, the same is automatically disabled and a “Zone Disabled”
error message is generated.
5.10.3 Outputs
Fig. Screen 38
In the case of disabled output, the panel generates an error for the respective output and the “Disable” and
“General Fault” LED-s are activated. The output is not activated by the activating event.
