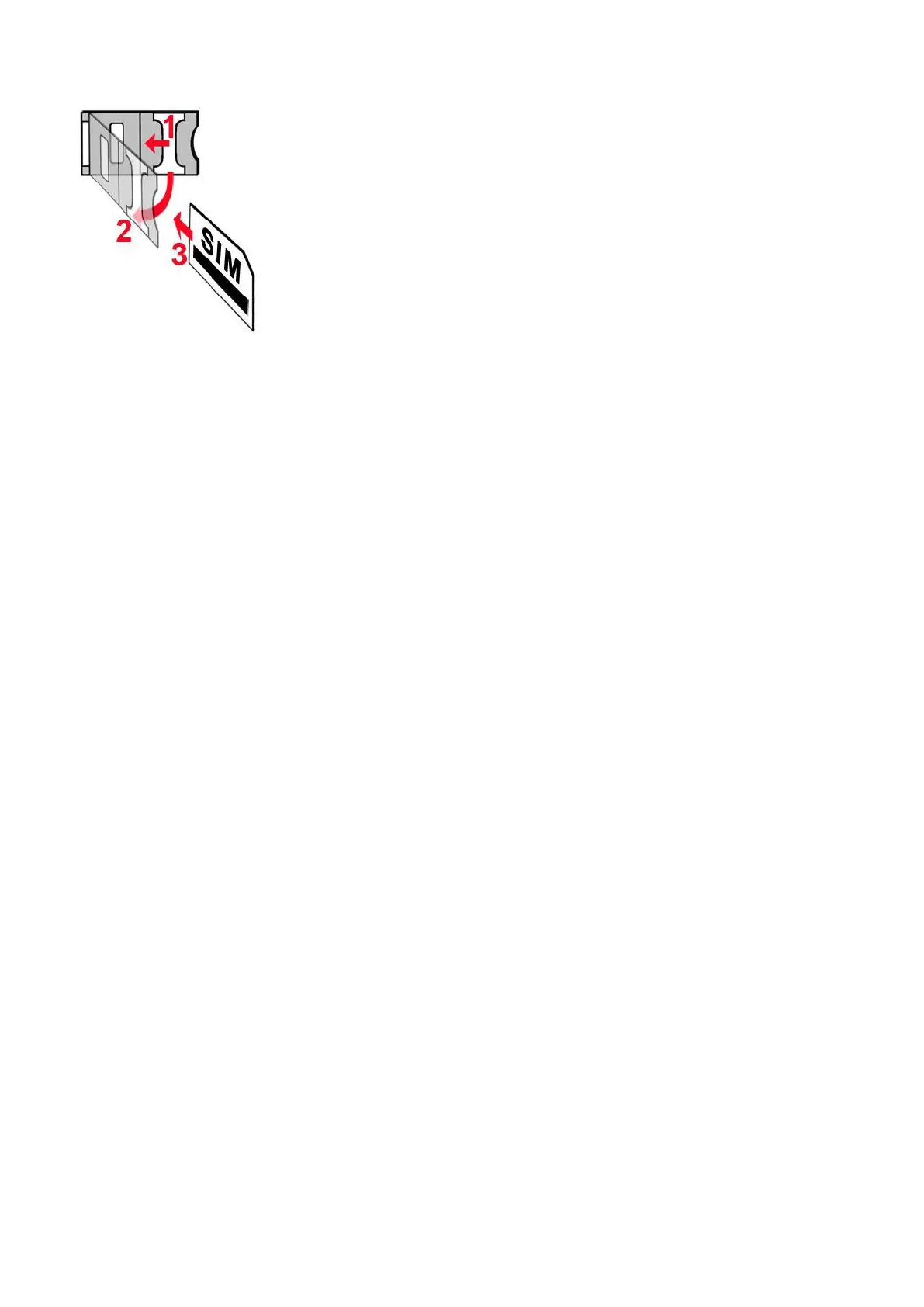

• Installing the SIM card:
▪ 1. Pull the metal security lock of the SIM holder towards the LED until
you hear a click.
▪ 2. Reach under the metallic security lock with your fingernail and pull
to open the holder.
▪ 3. Slide the SIM card into the opened part with the contacts facing
down, as shown in the figure.
▪ Fold back the opened part together with the SIM card.
▪ Secure the SIM card by pressing down carefully the metallic security
lock and pulling it towards the side of the enclosure until you hear
a click.
2.5 Connecting the antenna
Connect the GSM antenna to the FME-M socket. The device comes with an antenna that provides
good transmission under normal reception circumstances. In case of experiencing signal strength
problems or/and wave interference (fading), use a directed antenna, or find a more advantageous
mounting place for the antenna. In case of installing the unit into a metal box, the antenna should
be mounted outside the box, in a place where the measured GSM signal is the highest available.
2.6 Installation
Please check the environment before installing:
• Verify the GSM signal with your mobile phone. It may happen that the signal strength is not
sufficient in the place where you planned to mount the device. If this is the case, you can
reconsider the place of installation before mounting the device.
• Do not mount the unit in places where it may be affected by strong electromagnetic
disturbances (e.g., close to electric motors, high voltage, etc.).
• Do not mount the unit in wet places, or places with a high degree of humidity.
2.7 Putting into operation
• Disable the voicemail service and SMS notification about missed calls on the
SIM card installed in the device.
• The device can handle the SIM card’s PIN code. If you want to use the
PIN code management, configure the SIM card’s PIN code in the programming
software in the “General” device settings menu. Otherwise disable PIN code request
on the SIM card.
• Enable caller identification service on the SIM card at the GSM service provider (this
service might not be enabled by default, please check). To enable this service, install the
SIM card into a mobile phone and call the customer service of the card’s GSM service
provider and enable the service in the menu, or visit one of the service provider’s personal
customer services and ask to enable this service on the SIM card.
• Check the SIM card to be installed correctly into the device.
• Check the GSM antenna to be connected correctly to the device.
• Check the wires to be connected as instructed in the wiring diagram.
• You can power up the device (12-24V DC). Make sure that the power source is sufficient for
the operation of the Adapter2 device. The nominal current consumption of the Adapter2
device is 120mA, however it may increase up to 500mA during communication and output
control. If the used power source is not sufficient for the operation of the device, this may
cause malfunctions.
