5.1.1 Paradox alarm systems
• Installation:

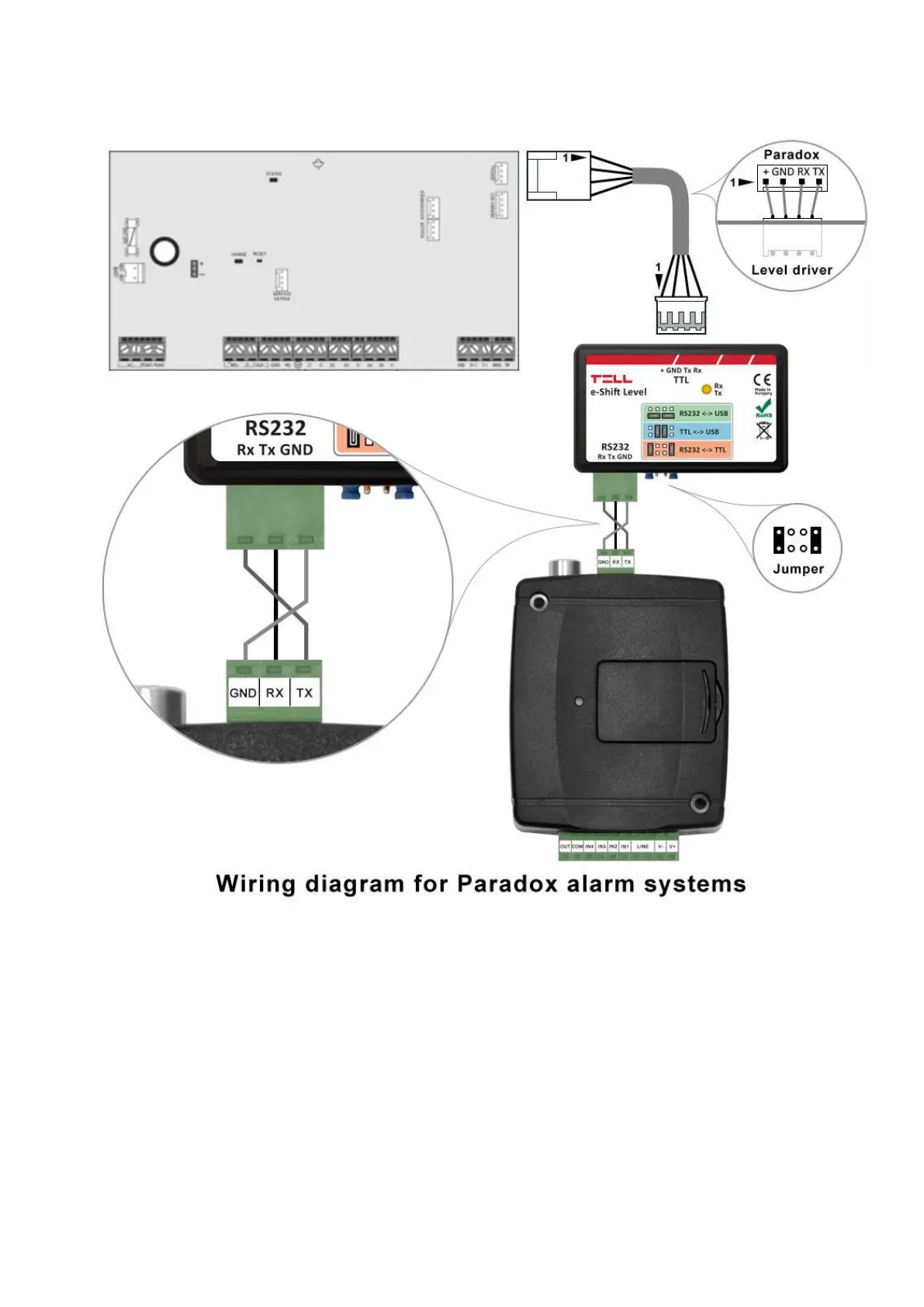

For Paradox alarm control panels, a level driver interface is needed to establish the serial link.
TELL offers its own level driver interface produced for this purpose. Connect the serial port output
of the level driver interface to the serial port of the Adapter2, then link the level driver interface
with the alarm control panel using the supplied special cable, as shown in the figure above.
Configure the jumpers of the driver level interface as well as shown in the figure above.
