System Overview
CalibratorCalibrator
The CDI Model 740 Calibrator uses gases for automatic calibration of the CDI OneView
System and CDI Shunt Sensors. It can calibrate up to two sensors simultaneously.
Note: When calibrating only one CDI Shunt Sensor, either Calibrator pocket can be
used. Gas ow will be automatically shut off to the unused Calibrator pocket.

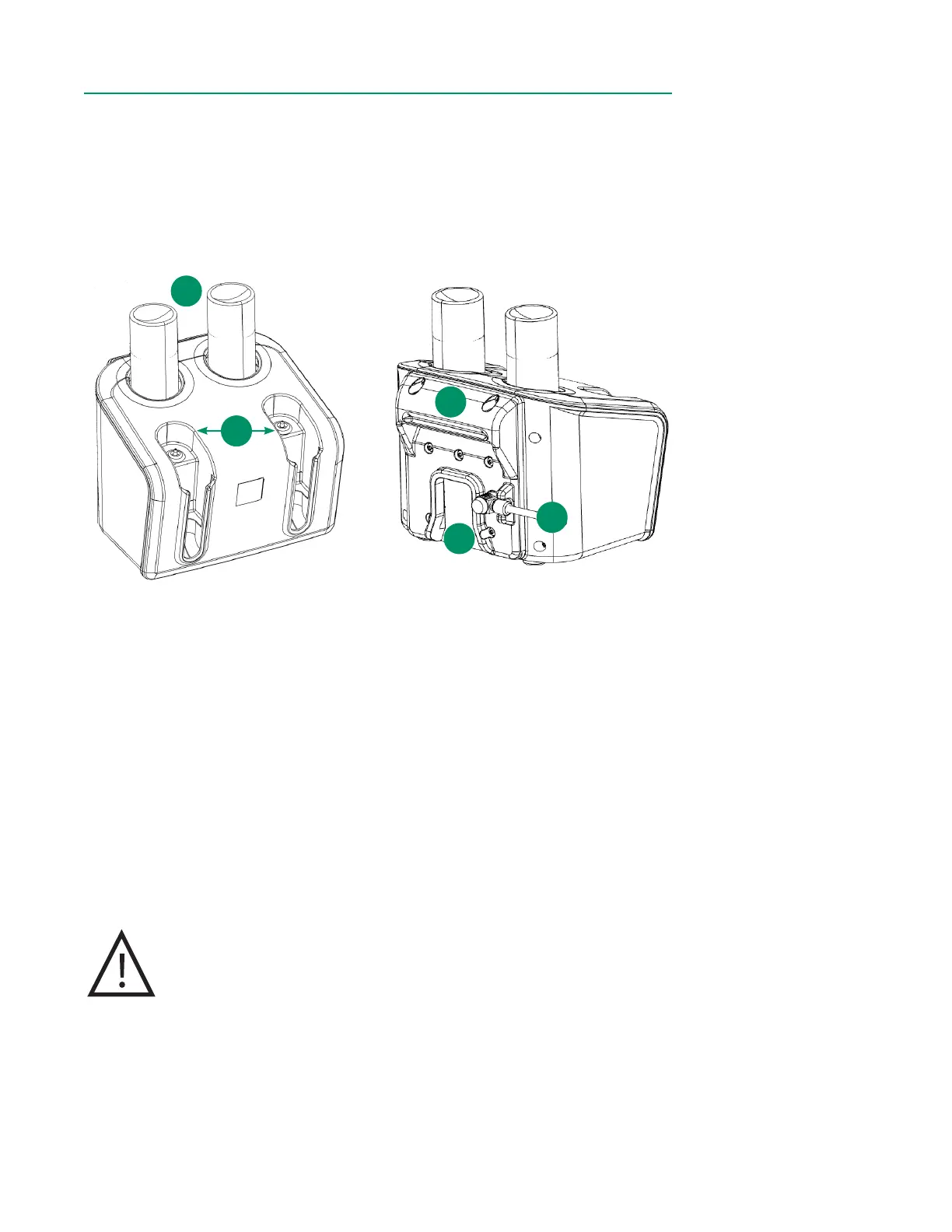

Front and Back of the CalibratorFront and Back of the Calibrator
1. Gas bottle receptacles: Holds the Gas 1 and Gas 2 bottles during calibration.
2. Pockets: Supports and aligns the sensor/BPM assembly during calibration.
3. Handle: Provides a grip when carrying the Calibrator by hand.
4. Mount: Facilitates attaching the Calibrator to the Calibrator Bracket.
5. Cable: Connects the Calibrator to the Core. Once connected, the Calibrator is
powered by the Core.
Caution
Always carry the Calibrator by the handle to minimize the risk of
dropping it.
