Calibration and Circuit Setup
Warning
Using uncalibrated BPM assemblies may result in inaccurate
values. A K
+
Code is required to skip calibration. If calibration is
skipped, the system will use the last K
+
Code entered.
Do not remove the sensor lter/sparger assembly from the CDI
Shunt Sensors until ready to connect them to the circuit. The
microsensors inside the CDI Shunt Sensors must be kept sterile
and moist. Exposure to air for more than a few minutes can
damage the microsensors.

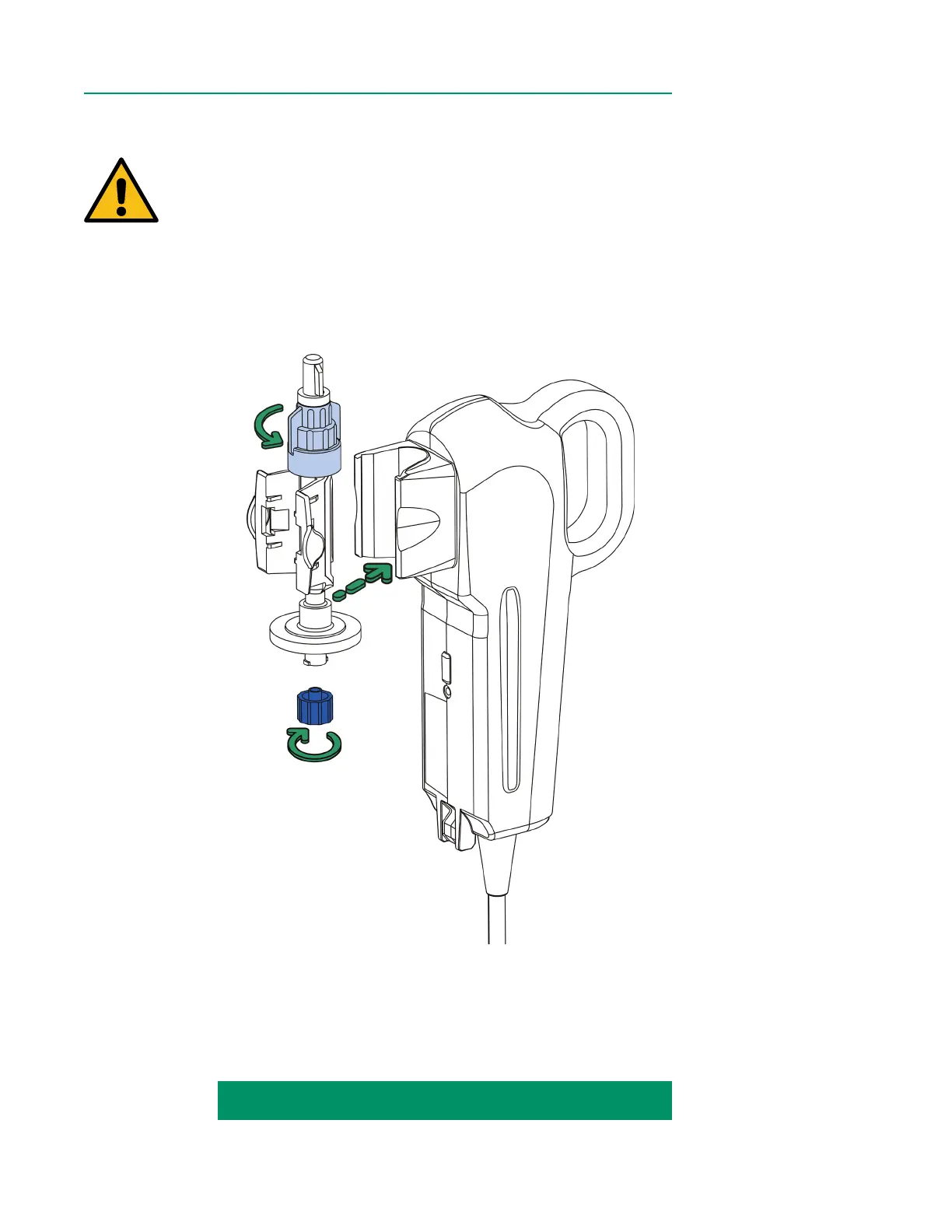

8. Remove the small blue cap from the lter/sparger assembly (see image above).
9. Using sterile technique, fully loosen the large, blue top-venting Luer on the
sensor(s). The cap will stay attached to the top of the sensor, allowing venting
of the buffer solution without compromising the sterility. The lter/sparger
assembly will prevent the buffer solution from leaking out of the sensor.
Loosen large
blue Luer
Remove small
blue cap
CALIBRATION INSTRUCTIONS CONTINUED ON NEXT PAGE:
Attach sensor
to the BPM
To Next Page
