4.2. Product description

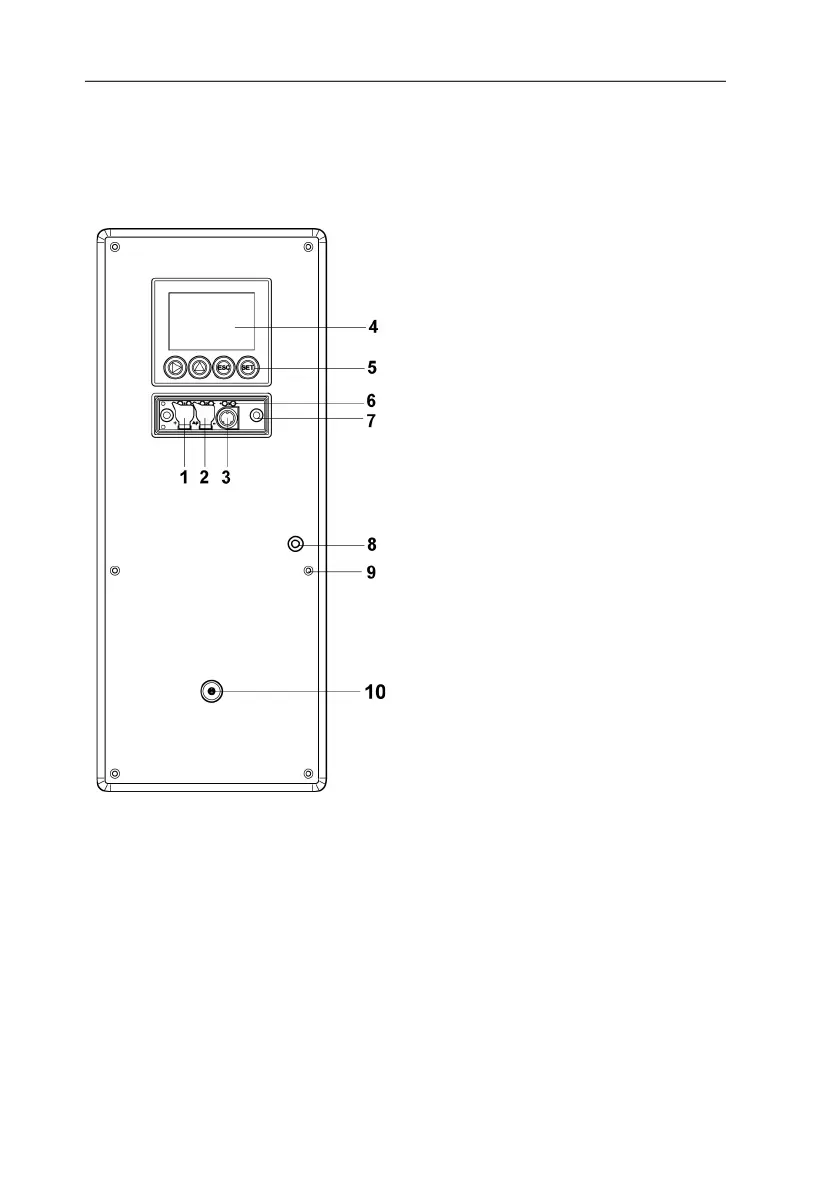

4.2.1. At a glance
1 Sealing plugs on the positive
pressure test connection (Ø
4 mm )
2 Sealing plugs on the
negative pressure test
connection (Ø 4 mm )
3 Socket for service plug
4 Display (optional)
5 Keys (only with optional
display)
6 Test rods for the analog
outputs
7 Service cover screw
connection (self-locking,
2 pcs.)
8 Aperture for front pressure
connection
9 Openings for screws for
fastening to the wall
10 Only with integrated humidity
probe (KMAT option D04):
Opening for the integrated
humidity probe
