4 Transmitter
23
3. Tie together each of the two adjacent cores using a cable tie.
4. Attach terminal strip for voltage supply and analog outputs.

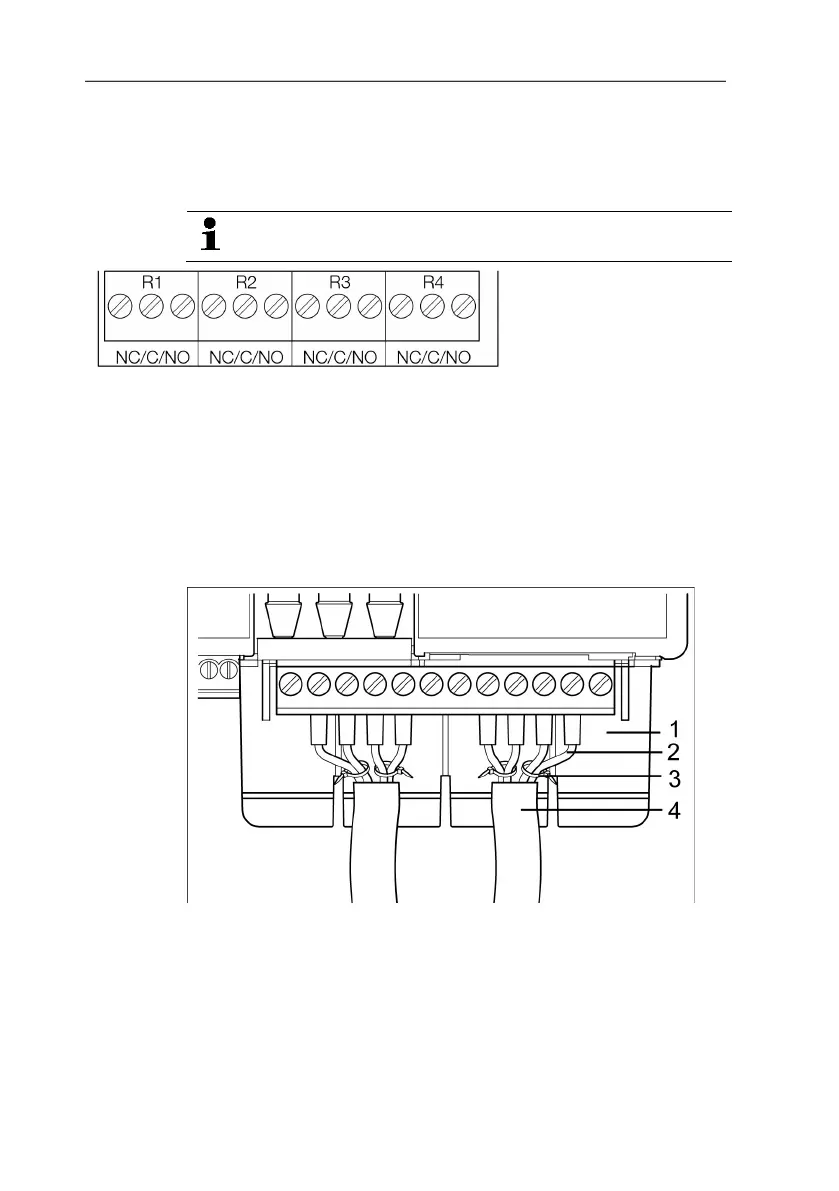

4.3.2.3. Connecting the relay outputs
Only have the transmitter wired and connected by
authorized personnel with the voltage disconnected.
Relay terminal strip,
item (2) of overview of
terminals
There is the option of twelve terminals for a total of four relays.
1. Remove relay cover.
2. Disconnect relay terminal strip.
3. Strip cable ends and clamp on wire end ferrules.
4. Connect relays according to chosen function (NC/NO) (see
diagrams below; relay 1 is shown as an example of a
connection).
Connection note
