6.3. Commissioning
6.3.1. Installing the probe
6.3.1.1. Installing testo 6613/6614/6615/6617 probes
If used with these probes, the testo 6383 transmitter is mounted on
the wall, see 4.3. volume 1, see Commissioning.
Install probe according to the application and the measuring and
spatial conditions, cf. cases A1 to C below
In processes with which condensate forms at the humidity
probe, install the probe vertically (filter points downwards).

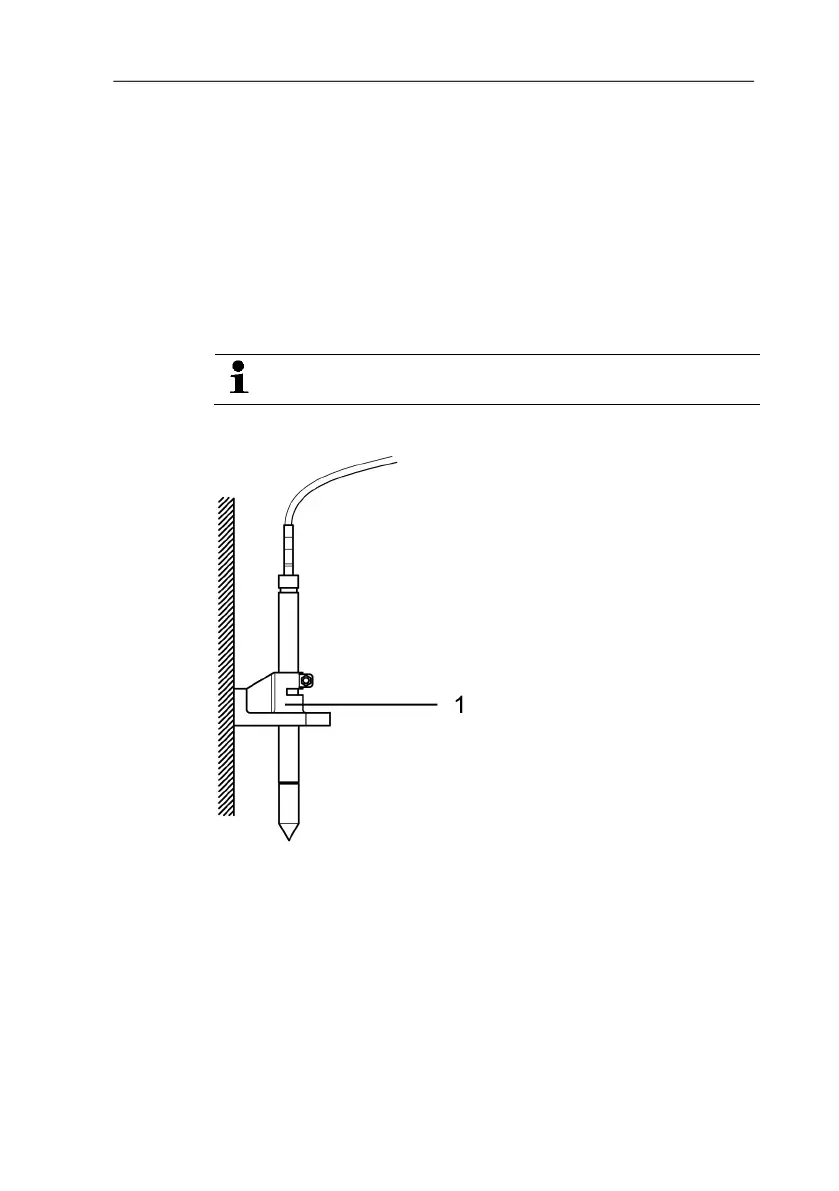

A 1 Wall mounting of probe
Wall/duct holder (order no. 0554 6651)
A 2 Wall mounting of testo 6614 heated probe
When mounting the testo 6614 heated probe version, the
temperature probe must be secured as close to the humidity probe
as possible (max. 10 cm). An appropriate assembly tool is supplied
with the testo 6614.
