4 Transmitter
39

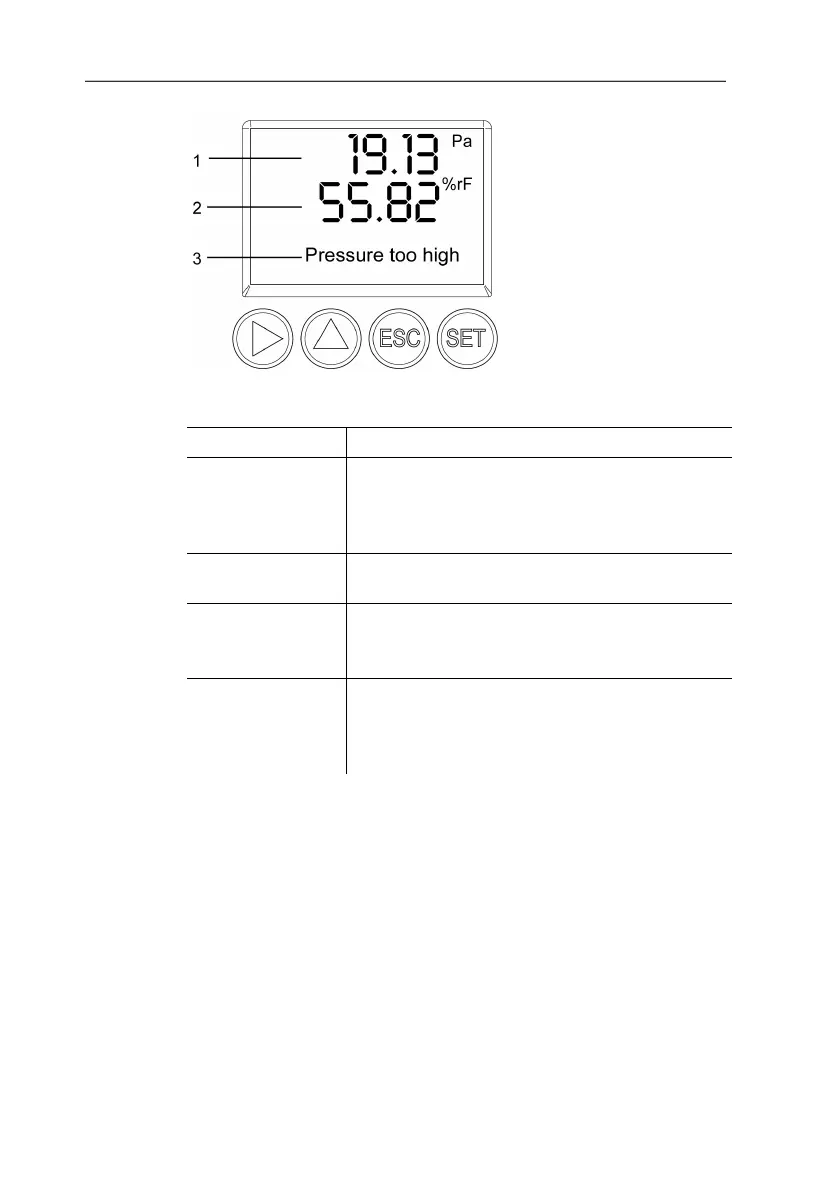

1 Channel 1 display
2 Channel 2 display
3 Channel 3
messages
Four keys enable the user to navigate/scroll through the menus and
enter/amend values and settings:
Key Function/description
SET • In Measuring Mode: changes to
parameterization
• In Parameterizing Mode: confirms a
selection or setting
ESC • Leaves a menu (without modifying any
settings)
• Selecting: scrolls through menus
(downwards) or selectable alternatives
• Editing: changes to next digit (to the right)
•
Selecting: scrolls through menus (upwards)
or selectable alternatives
• Editing: increases the value of the current
digit by 1
