4.1 Introduction
The device can change the values of ChargingVoltage() and ChargingCurrent() based on Temperature() and
Cell Voltage1..2(). Its flexible charging algorithm is JEITA-compatible and can also meet other specific cell
manufacturer charge requirements. The ChargingStatus() register shows the state of the charging algorithm.

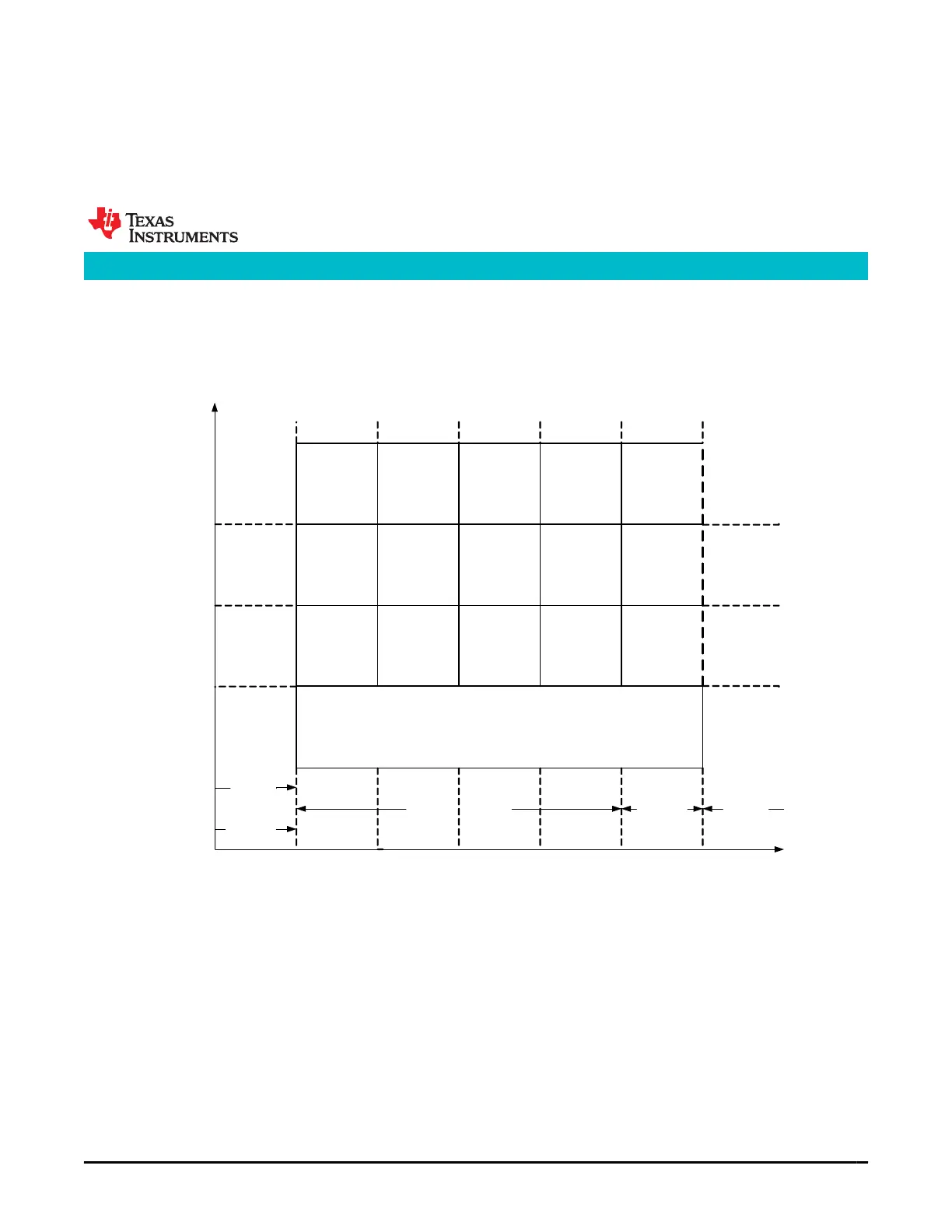

Cell Voltage
CVH
CVM
CVL
Temperature
T1 T2 T5 T6 T3 T4
CHG
SUSP
CHG
INHIBIT
CHG NORMAL
CHG
INHIBIT
CHG
SUSP
PCHG
LT CCH STL CCH STH CCHRT CCH HT CCH
LT CCM STL CCM STH CCMRT CCM HT CCM
LT CCL STL CCL STH CCLRT CCL HT CCL
4.2 Charge Temperature Ranges
The measured temperature is segmented into several temperature ranges. The charging algorithm adjusts
ChargingCurrent() and ChargingVoltage() according to the temperature range. The temperature ranges set in
data flash should adhere to the following format:
T1 ≤ T2 ≤ T5 ≤ T6 ≤ T3 ≤ T4
Chapter 4
Advanced Charge Algorithm
www.ti.com Advanced Charge Algorithm
SLUUCO0 – APRIL 2022
Submit Document Feedback
BQ28Z610-R2 23
Copyright © 2022 Texas Instruments Incorporated
