Reassembly
1. Install and set the blade retainer nut on the drive
end, 1 in from the shoulder of the shaft to inside of
the nut (see Figure 13C-6 inset).
2. Install a 0.75 in (19.05 mm) spacer, 0.46875 in
(11.91 mm) spacer, and a blade.
NOTE:
The blade must be positioned so the flat of the
blade rotates toward the bedknife.
3. Alternately install a spacer and blade until 41
spacers and 40 blades have been installed.
4. Install the blade, retaining nut, torque to
10 to 15 ft-lbs (13.5 to 20 Nm).
NOTE:
It is necessary to align the blades with the
grooves of the roller. This can be done after
installing the groomer shaft assembly.
5. Install the groomer shaft assembly as described in
the Installation section.
Installation
1. Install the groomer shaft drive end into the belt
case, aligning the bearing housing flat in the belt
case groove.
2. Install the bearing housing capscrew, do not
tighten.
3. Install the groomer mounting bracket, do not
tighten.

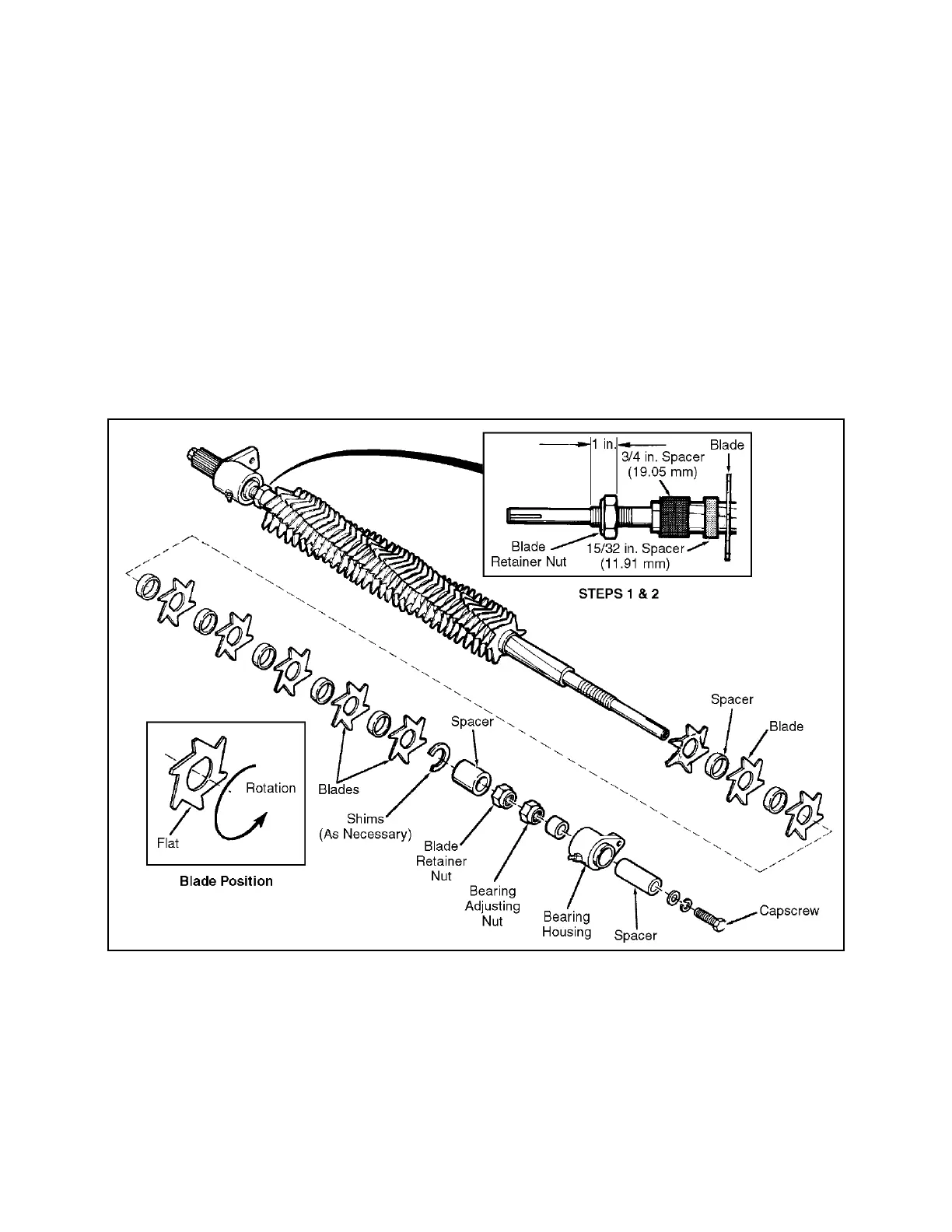

Figure 13C-6. Groomer Blade Repair
4. Install the quick height pivot screw, tighten then
back off 1/8 turn.
5. Adjust the groomer shaft bearing as described in
the Bearing Adjustment section.
6. Install the drive gear and belt.
7. Install the spacer, drive key and clutch. Torque the
clutch bolt to 20 ft-lbs (27 Nm).
8. Adjust the belt as described in the Drive Pulley
Repair section.
