OPTIONS
13C-12
9. Install the cover. Torque the capscrews to 6 to 8
ft-lbs (8 to 10.8 Nm).
10.Align the blades to roller as described in the Blade
to Roller Alignment section.
Blade to Roller Alignment
1. The groomer shaft should be installed to properly
align the groomer cutter to the roller
(Figure 13C-7).
2. Loosen the front roller locknuts. Slide the roller
toward the belt case end until the cutter contacts
the roller discs.
3. Starting on the drive end, check that all blades
touch the roller disks. If there is a space, install
0.010 in (0.25 mm) shim P/N 364040 until all
blades touch the roller disks.
4. Torque the blade retainer nut 10 to 15 ft-lbs
( 13.5 to 20 Nm).
5. Slide the roller toward the motor end so the blades
are centered between each disc. Fasten the roller
retaining locknuts on each end.

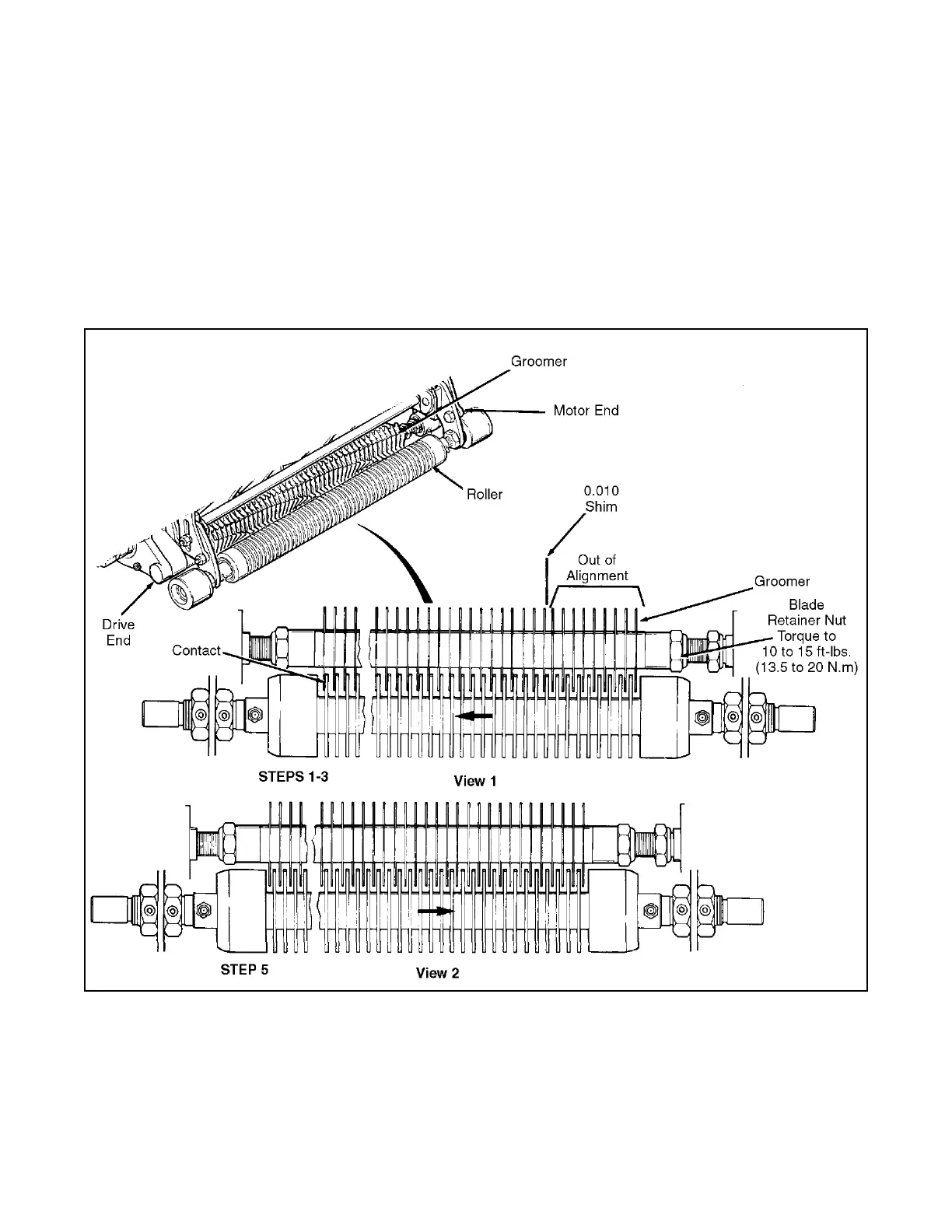

Figure 13C-7. Blade to Roller Alignment
