Run UltraSync ONE as an RF Slave
To set your UltraSync ONE to run as an RF slave:
1. Connect your camera or sound mixer/recorder to your UltraSync ONE.
If you want your UltraSync ONE to provide timecode via the LTC port, connect
your device to the LTC port. Use the blue DIN 1.0/2.3 to BNC cable that is
supplied with your UltraSync ONE.
If you want your UltraSync ONE to provide timecode, genlock, or word clock
via the SYNC port, connect your device to the SYNC output port. Use the red
DIN 1.0/2.3 to BNC cable that is supplied with your UltraSync ONE.

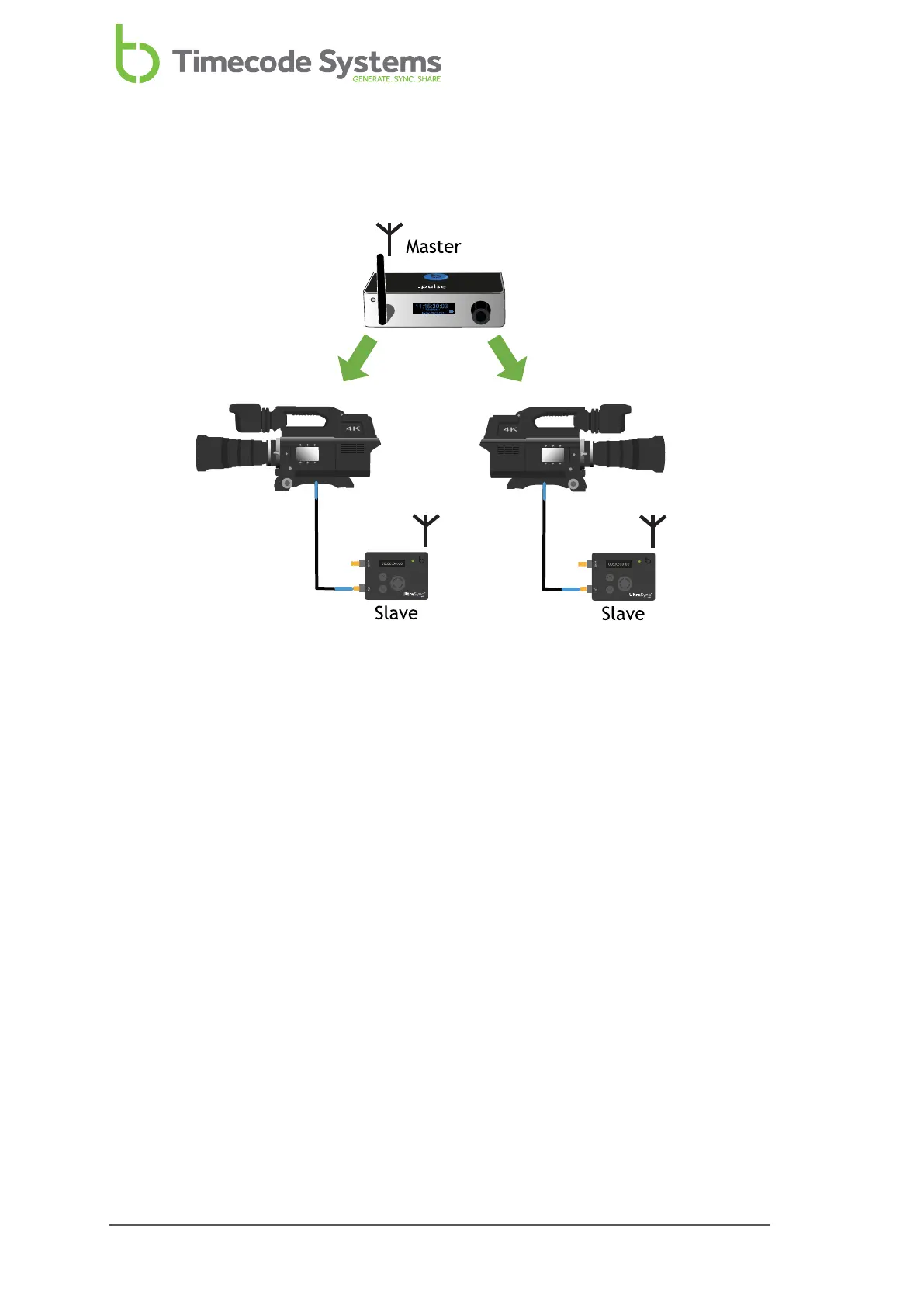

2. Position your UltraSync ONE so that it is within range of the master device in
your RF network. It is easier to confirm that synchronisation has taken place
if you can see the clocks and LEDs of your slave and the master at the same
time.
3. Make sure your UltraSync ONE is switched on (see Switch UltraSync ONE On
and Off on page 11).
4. Press the Select button.
52 UltraSync ONE User Guide
