Set the SYNC Output
Your UltraSync ONE has a SYNC output port that can output word clock, genlock, or
timecode (LTC). You should use the SYNC port if:
l You want to output genlock to a camera for added accuracy
l You want to output word clock to a sound mixer/recorder for added accuracy
l You are using the LTC port as an input port and need to output timecode via a
wired connection.
Note: You can use the SYNC output in any of the UltraSync ONE modes.
To use the SYNC port, you need to set the Sync O/P Mode. You may also need to set
the Sync O/P Level.
1. Set your external device (camera, sound mixer/recorder) to receive genlock,
word clock, or timecode from an external source. Please refer to the
manufacturer's instructions for more details.

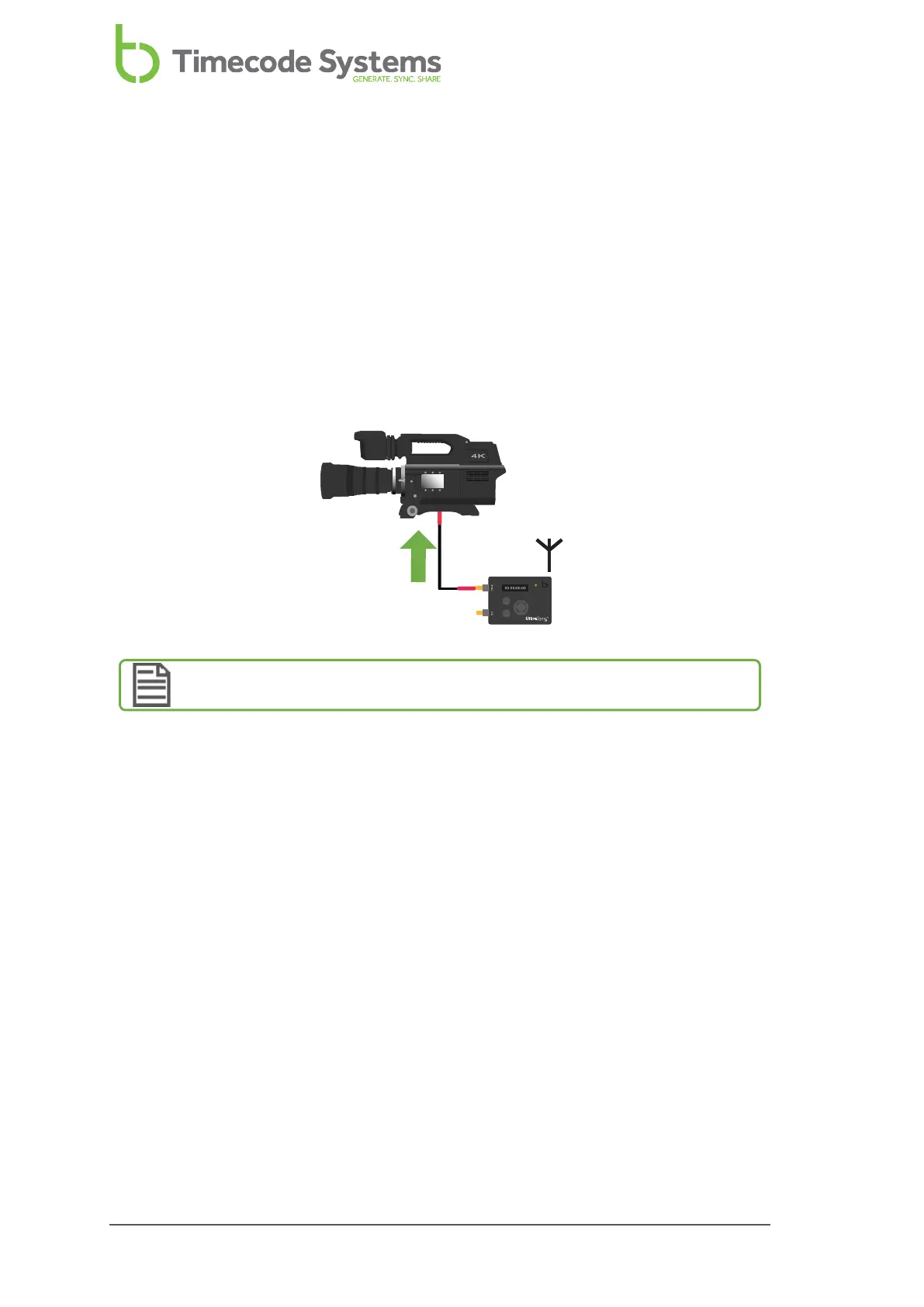

2. Connect your camera or sound mixer/recorder to the SYNC port. Use a
suitable cable (the red DIN 1.0/2.3 to BNC cable that is supplied with your
UltraSync ONE is suitable for some devices).
3. Make sure your UltraSync ONE unit is switched on (see Switch UltraSync ONE
On and Off on page 11).
4. Press the Select button.
5. Use the Up and Down buttons to scroll to the Sync Generator option.
6. Press the Select button.
7. Use the Up and Down buttons to scroll to the Set Sync O/P Mode option.
76 UltraSync ONE User Guide
