[Angle analysis]
1) The message display area (1) displays the explanation and alert messages
for the analysis.
2) Touching the “SS” button (2) and then the SS (Sclera) point in the image
displays an SS point at that point and circles with diameters of 500-um and
750-um regarding the displayed SS point as the center (Fig. 1).
3) Touch the “SS” button (2), and then touch the image or the cursor buttons
(3) to adjust the SS point.
4) Touching the “TMPLANE” button (4) and touching a point in the image
displays the TMPLANE point.
3-361
(1)
(2) (4)
(3)

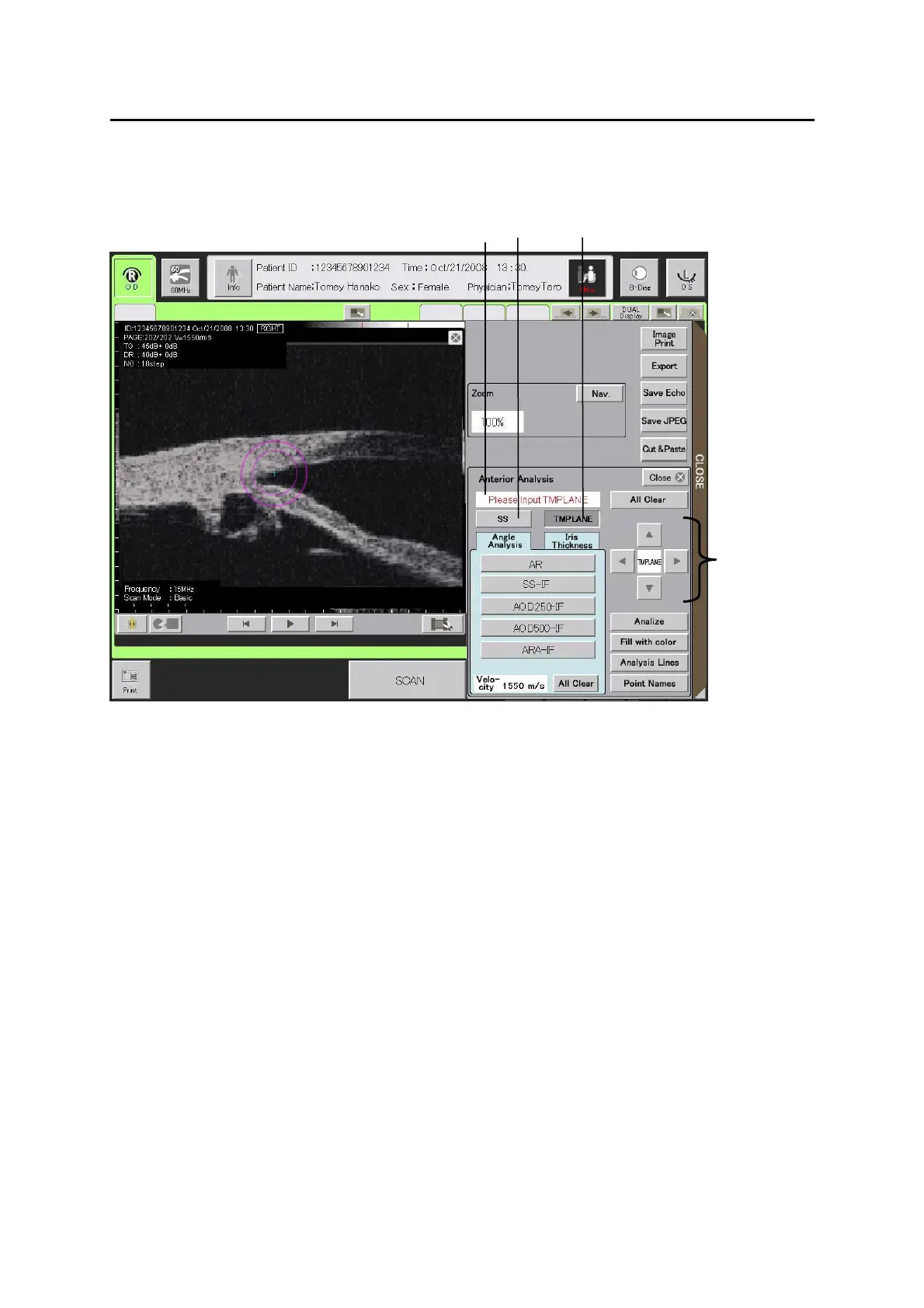

(Fig. 1)
