Tomey UD-8000 User Manual

3-67 ■
5) The angle is automatically analyzed immediately after the SS point and
TMPLANE are specified on the image. Automatic analysis automatically
detects analysis points to calculate AOD250, AOD500, AOD750, ARA500,
ARA750, TISA500, TISA750, and TIA500 (Fig. 2). However, analysis points
sometimes cannot be detected automatically depending on the image
status. In such cases, displayed analysis results include only parameters
that were successfully analyzed.
■ Refer to “Angle analysis parameter list” for details of
parameters.
6) The analysis point can be adjusted manually after automatic analysis is
completed. Touch the "SS" button (2), “TMPLANE” button (4), or any of the
angle analysis point buttons (5) to select the point to be analyzed, and then
touch the image or the cursor buttons (3) to move the point.

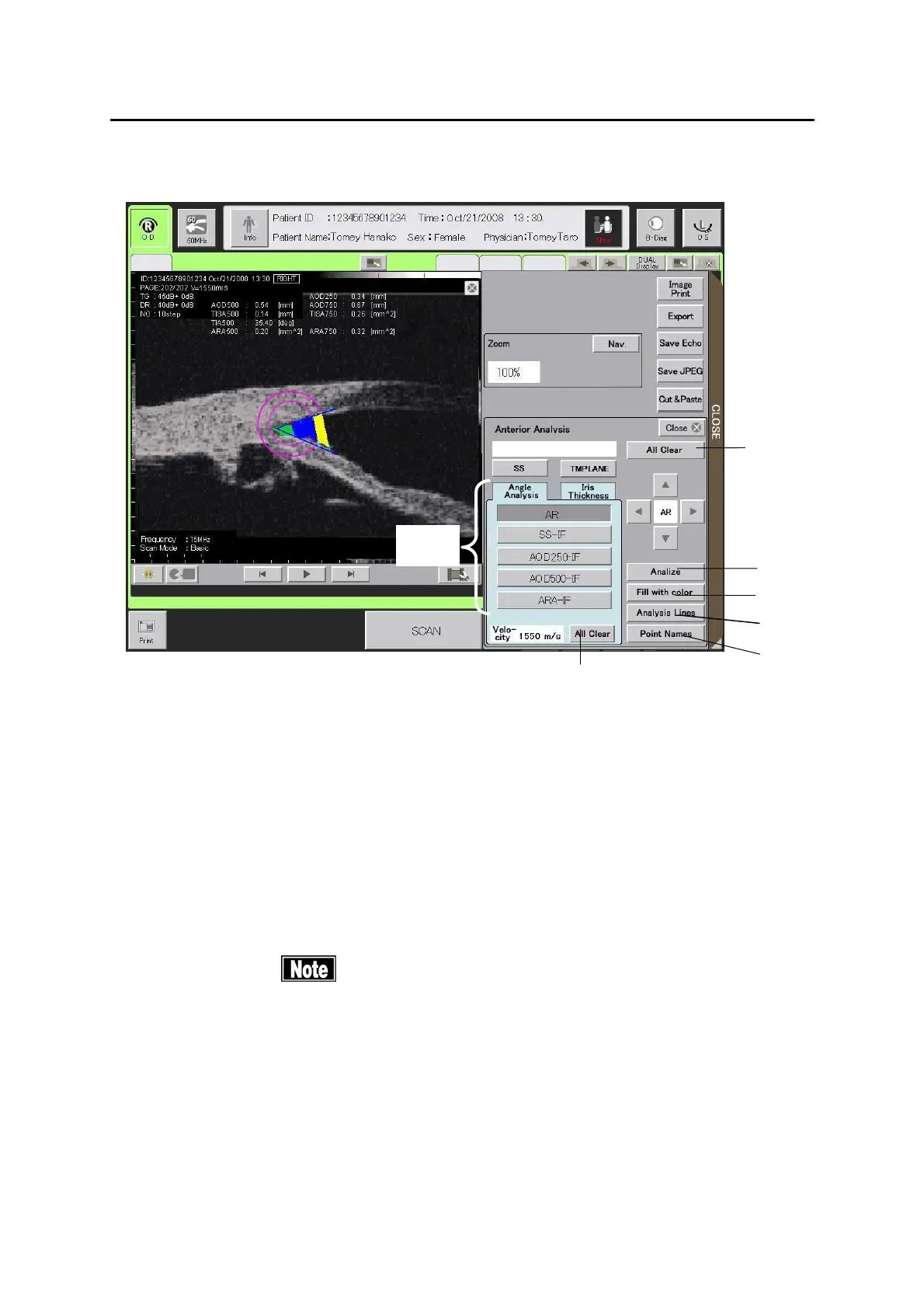

(Fig.2)
(11)
(5)
(10)
(7)
(6)
(9)
(8)
