5) The iris is automatically analyzed immediately after the SS point and
TMPLANE are specified on the image. Analysis points are detected
automatically to calculate ID1, ID2, ID3, TCPD, and ICPD (Fig. 2). However,
analysis points sometimes cannot be detected automatically depending on
the image status. In such cases, the analysis results displayed only include
parameters that were successfully analyzed.
■
Refer to “Iris thickness parameter list” for details of
parameters.
6) The analysis point can be adjusted manually after automatic analysis is
completed. Touch the “SS” button (2), “TMPLANE” button (4), or any of iris
thickness point buttons (5) to select the point to be analyzed, and then
touch the image or the cursor buttons (3) to move the point.
■
Refer to “Iris thickness point list” for details of points.

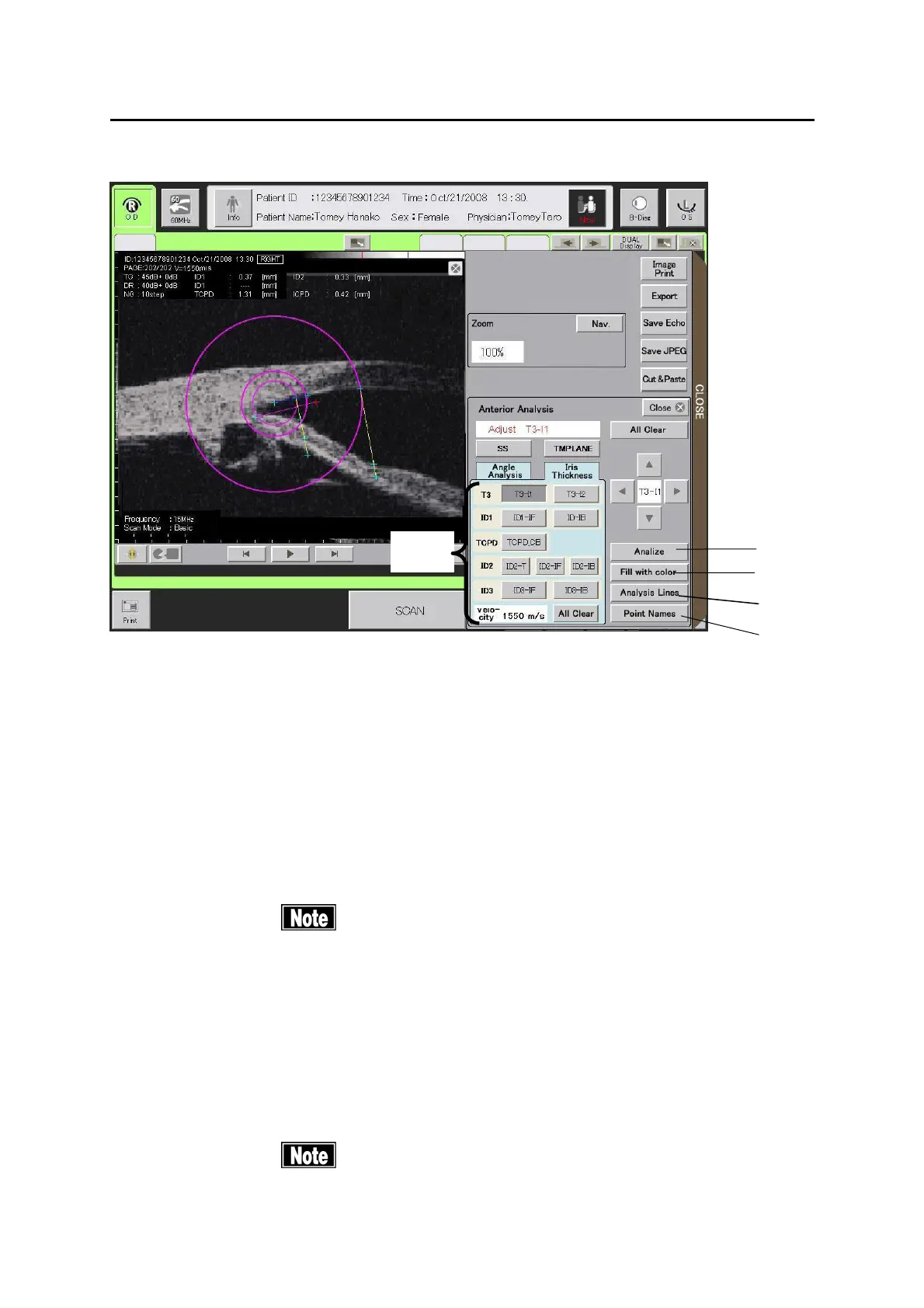

(Fig.2)
(7)
(6)
(9)
(8)
3-364
(5)
