3-9 ■

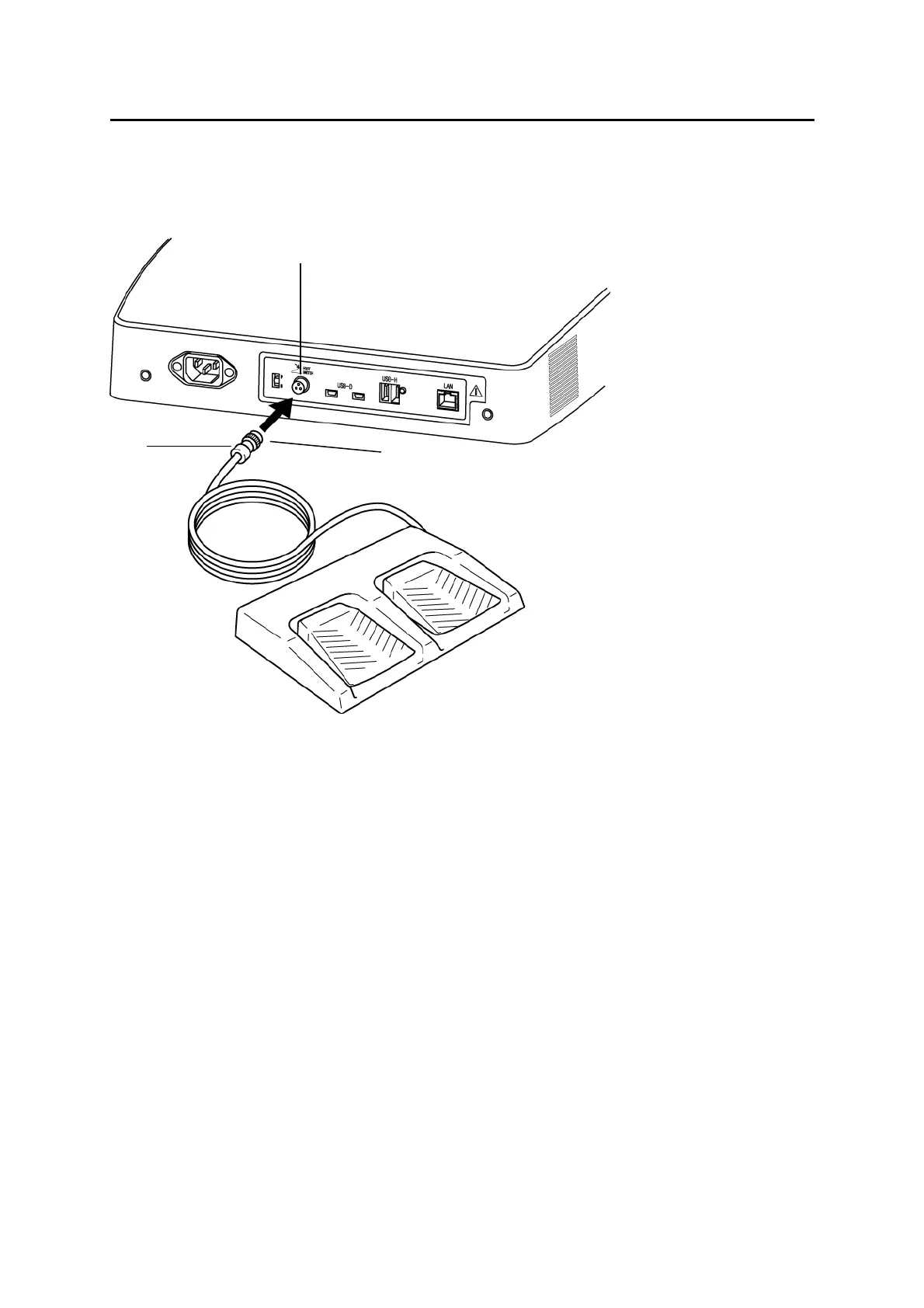

f) Connecting the footswitch
1) Insert the footswitch connector (1) into the footswitch connector (2) on the
back of the instrument, aligning the notches of the connectors.
2) Turn the fixture (3) of the connector clockwise until it stops to secure the
connector.
(2)
(1)
(3)
(Fig. 1)
