Tonghui TH2816B - Page 51

51

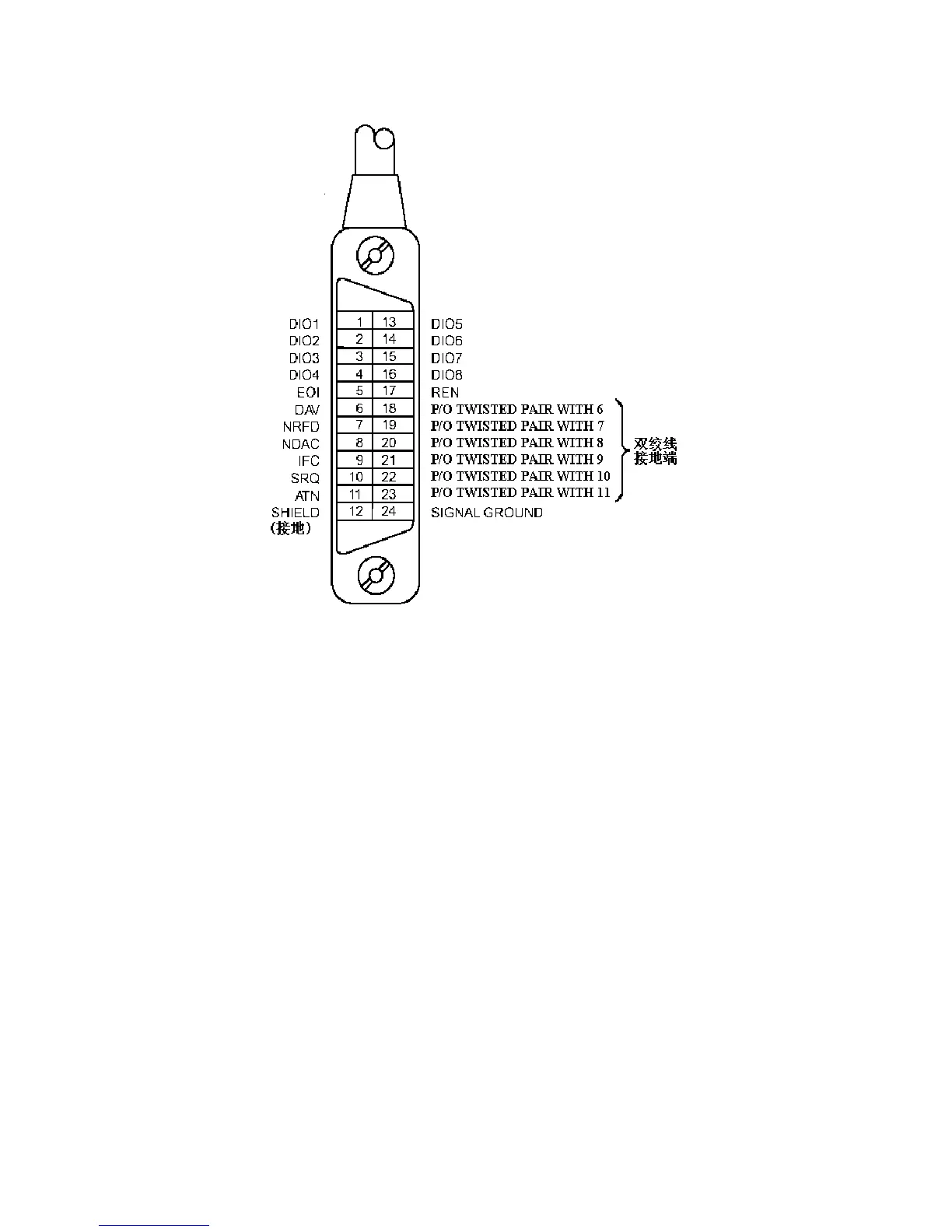

Figure 5-1. GPIB Connector Signal/Pin Configuration
Typical GPIB system interconnection is shown in Figure 5-2 and Figure 5-3. The GPIB
connector is firmly fastened using two bolts to keep it from working loose during use.
