while Format 2 is used by List Sweep page. The two formats are described
respectively as follows.
5.3.1 Format 1
The ASCII data output format on the MeasDisplay page, BinNo. Disp page, or Bin
Count page is described in Figure 5-4.

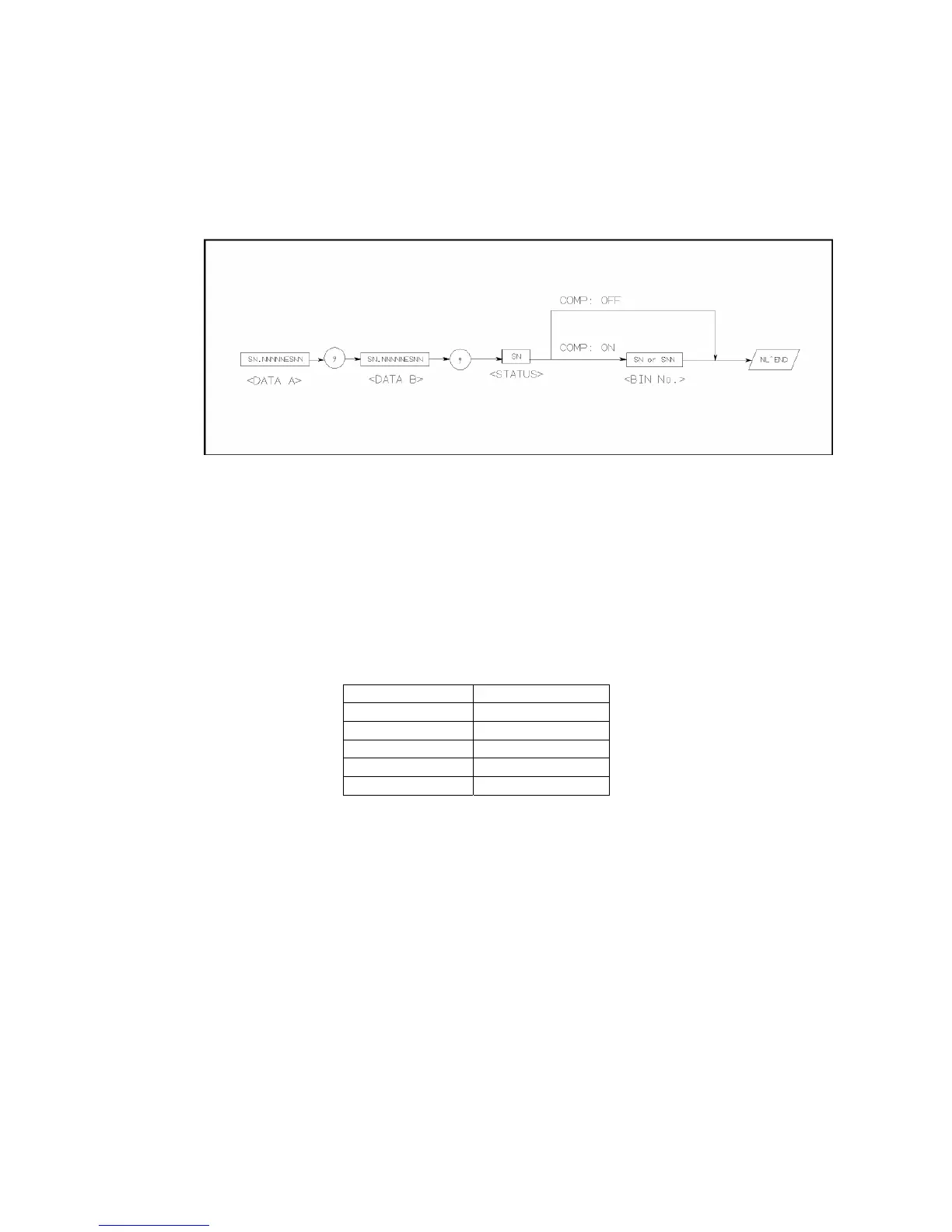

Figure 5-4 ASCII Data Format 1
The <DATA A>, <DATA B>, and <BIN> formats are as follows.
 <DATA A> and <DATA B> format:
The data output formats for <DATA A> (primary parameter's measurement data), and
<DATA B> (secondary parameter's measurement data) uses the 12 ASCII character
fixed length format as follows.
SN.NNNNNESNN
(S: +/-, N: 0 to 9, E: Exponent Sign)
 <BIN> Format:
The <BIN No.> data shows the bin sorting results as follows.
Data Sorting Results
1 BIN 1
2 BIN 2
3 BIN 3
4 AUX_BIN
5 OUT_OF_BINS
The <BIN No.> data is output with the measurement data only when the
comparator function is set to ON.
