5.3.2 Format 2

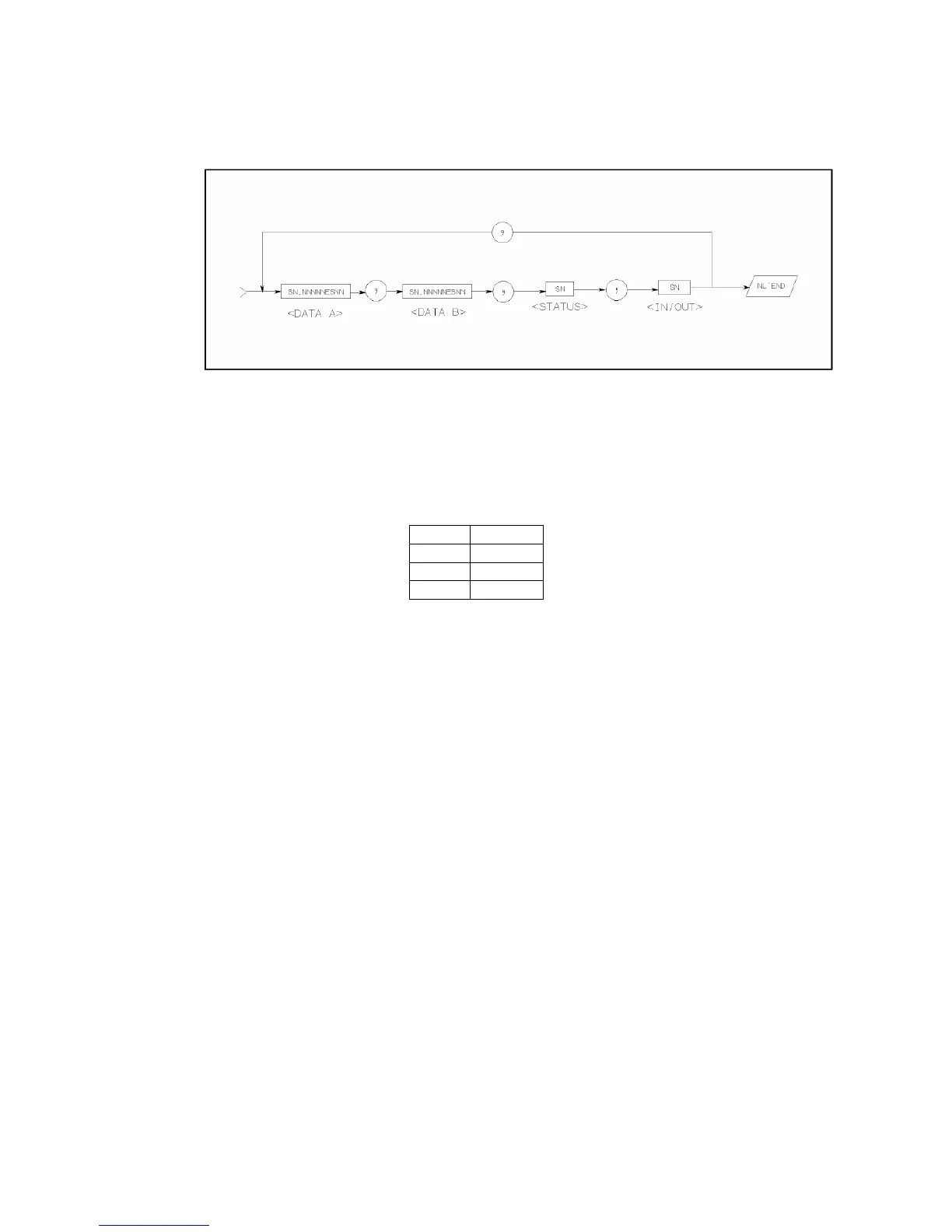

The ASCII data output format on the List Sweep page is described in Figure 5-5.
Figure 5-5 ASCII Data Format 2
The data loop is repeated for the number of the sweep points.
The <DATA A>, <DATA B>, <STATUS> formats are the same as the formats on the
MeasDisplay, Bin No. Disp, or Bin Count page. So the only the <IN/OUT> format
will be described.
<IN/OUT> format:
The <IN/OUT> data shows the result of the list sweep's comparator function.
When the comparator function for the list sweep measurement isn’t used, the
<IN/OUT> use the 2 ASCII character fixed length format as follows.
SN (S:+/-, N: 0 to 1)
Data Result
-1 OUT
0 IN
+1 HIGH
