Topcon DL-501 User Manual

117
24.OPTIONAL ACCESSORIES
The following are optional accessories which are sold separately from the DL.
 Remote Trigger (DLC1A)
Optional accessory for the DL-501 Standard.

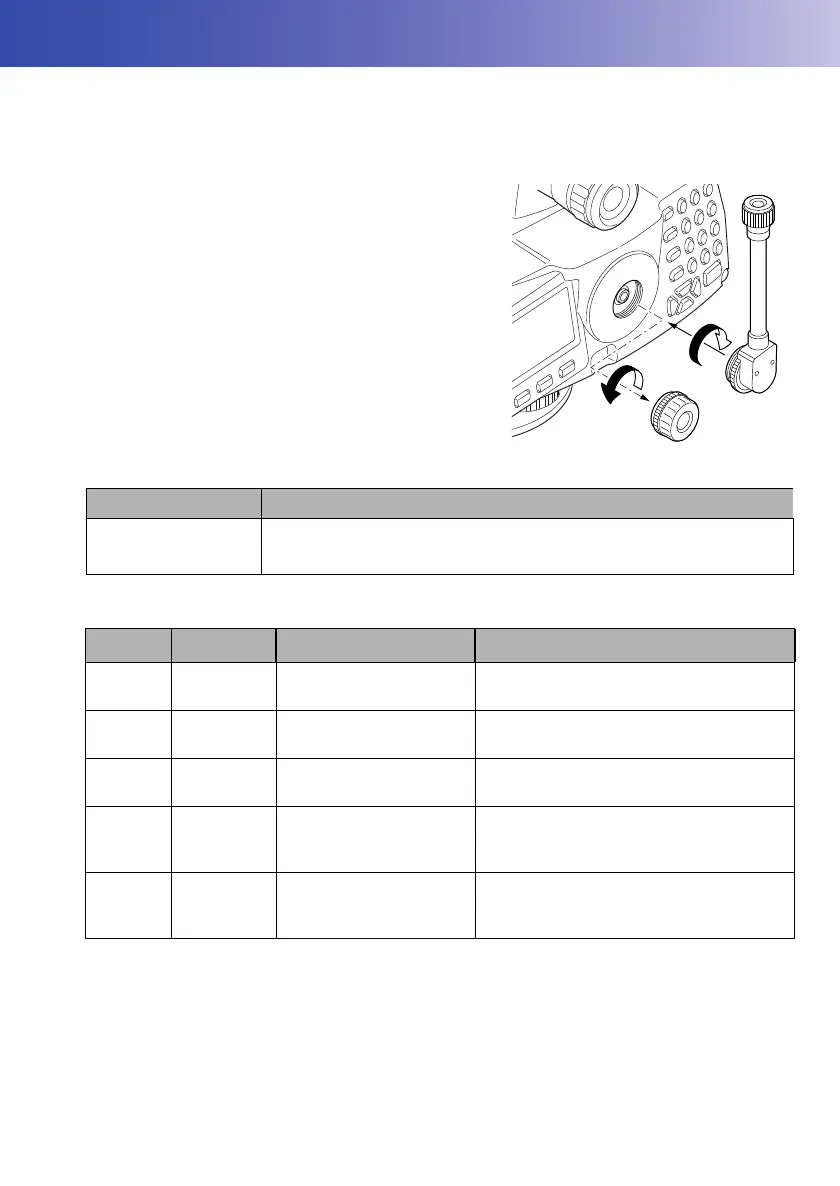

 Diagonal eyepiece (DE28/DE29)
The diagonal eyepiece is convenient for observations
in narrow spaces.
Magnification:
DE28: 32X
DE29: 44X
First remove the standard DL eyepiece by turning it
counter-clockwise. Then screw the diagonal eyepiece
into place.
 Interface cable
Connect the DL to a data collector using the following cable.
 Staffs
*RAB code (RAndom Bi-directional code) is a coded staff used with Certain digital levels.
Cable Notes
DOC129
Pin number and signal level : RS232C compatible
D-Sub connector : 9 pins (female)
Name Material Length/Front/Reverse Feature
BIS30A New Super
Invar
3.038m (9.8ft)
Front: RAB code*
ISO 12858-1: 1999 compatible
For high precision leveling
BIS30 Invar 3.038m (9.8ft)
Front: RAB code*
ISO 12858-1: 1999 compatible
BIS20 Invar 2.0m (6.6ft)
Front: RAB code*
ISO 12858-1: 1999 compatible
BGS40 Glass fiber 4.08m (3 sections)
Front： RAB code*
Reverse: graduated
With handle
BGS50 Glass fiber 5.09m (4 sections)
Front： RAB code*
Reverse: graduated
With handle
DE28/29
DL-501_E.book 117 ページ ２０１５年９月１７日 木曜日 午後１時２１分
