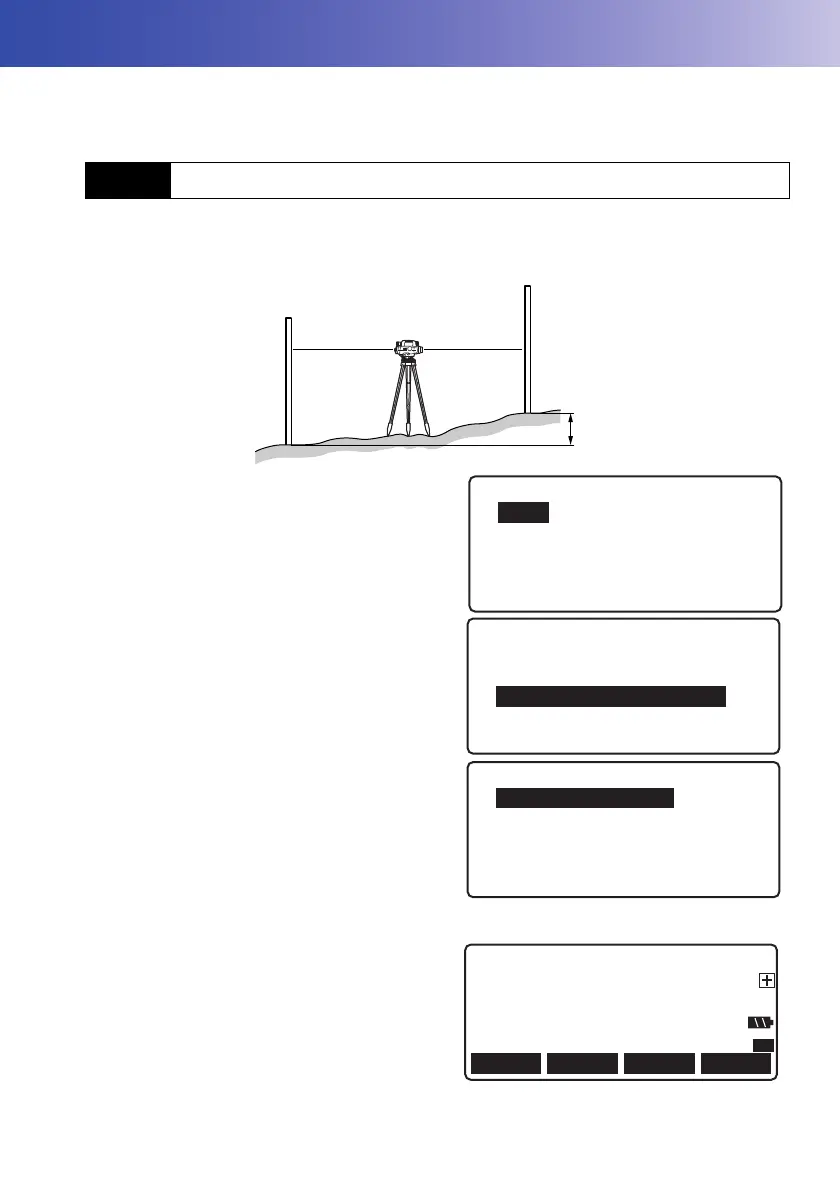

37
11.SIMPLE MEASUREMENT
This chapter explains how to measure height difference or elevation without setting a route.
•The maximum number of points per JOB is 2000.
This function allows the user to calculate the height difference (
dH) between backsight (A) and
foresight (B).
1. Select "Meas" in <Menu>.
2. Select "Simple measurement" in <Meas
menu>.
3. Select "Ht-diff. meas." in <Simple meas.
menu>.
4. Set up the DL between A and B.
5. Measure backsight.
[FOCUS]: Press to perform Auto Focus only.
11.1 Measuring Height Difference
A
B
dH
Menu
1.Meas
2.Management
3.Config
4.Calculation
Meas menu
1.Height dif.
2.Check & adjust.
3.Simple measurement
Simple meas. menu
1.Ht-diff. meas.
2.Elevation meas.
3.View
4.Deletion
FOCUS
BS Go
BS0001
Rh
Hd
PT.ID
CNFGTILT
S
P1
