15
4. BASIC OPERATION

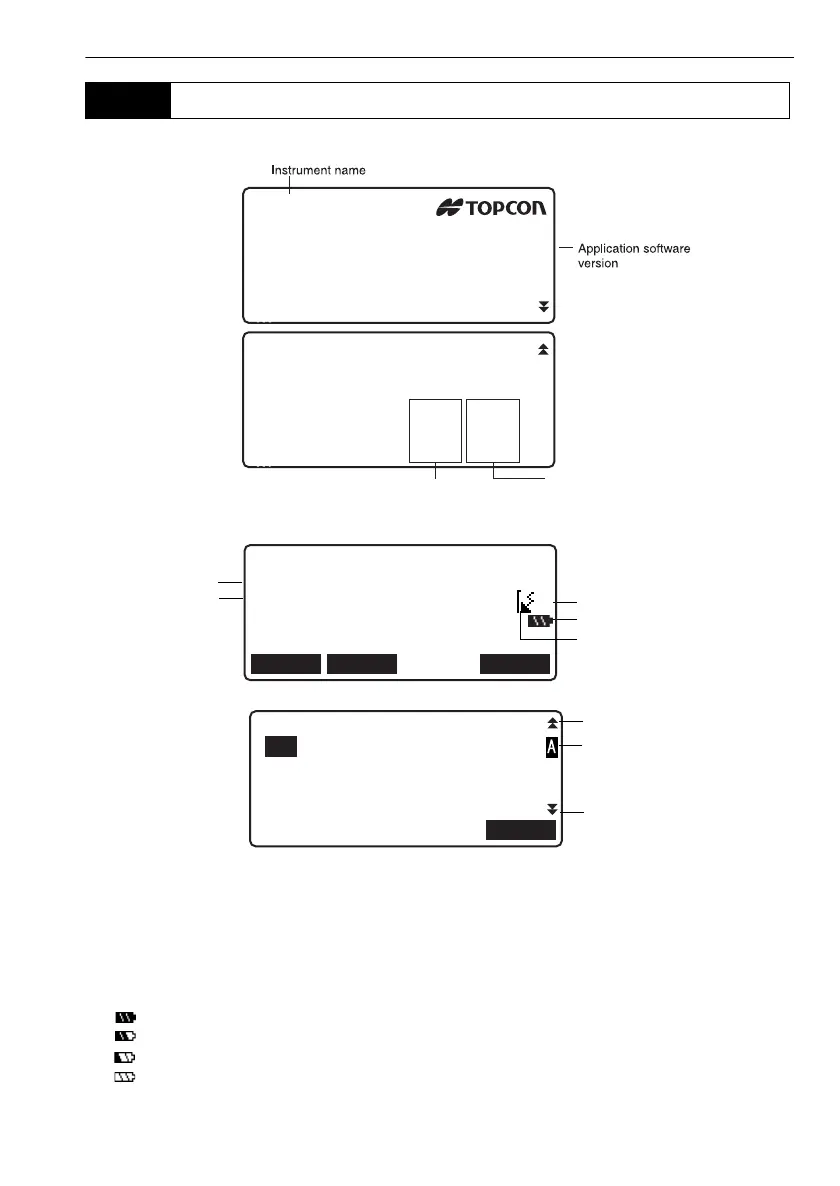

Status screen
Meas Mode screen
Input screen
*1 Rh: Staff reading (height)
*2 Hd: Horizontal distance to staff
*3 Measurement mode
S: Single
R: Repeat
A: Average
T: Rapid
* 4 Remaining battery power (BDC58/70, Temperature=25°C)
: level 3 Full power.
: level 2 Plenty of power remains.
: level 1 Half or less power remains.
: level 0 Little power remains. Prepare replacement battery where available.
4.2 Display Functions
DL-501 Adv
S/N 999999
Appli :Ver.XXXX-XX-XX
Sensor:Ver.XXXX-XX-XX
Feb/03/2012 14:23:34
Job: XXXX
Route:XXXX
Rec.remainder
Meas.pt: XXXX(XXX)
Start info: XXXX(XXX)
Fixed pt: XXXX(XXX)
Available memory
(current route)
Available memory
(total)
*1
*2
*3
*4
Rh
Hd S
TILT MENU FOCUS
*5
End bench mark id
:B2
End bench mark elev.
: 165.00000m
OK
Previous page
Next page
*6
