14. CALCULATION FUNCTIONS

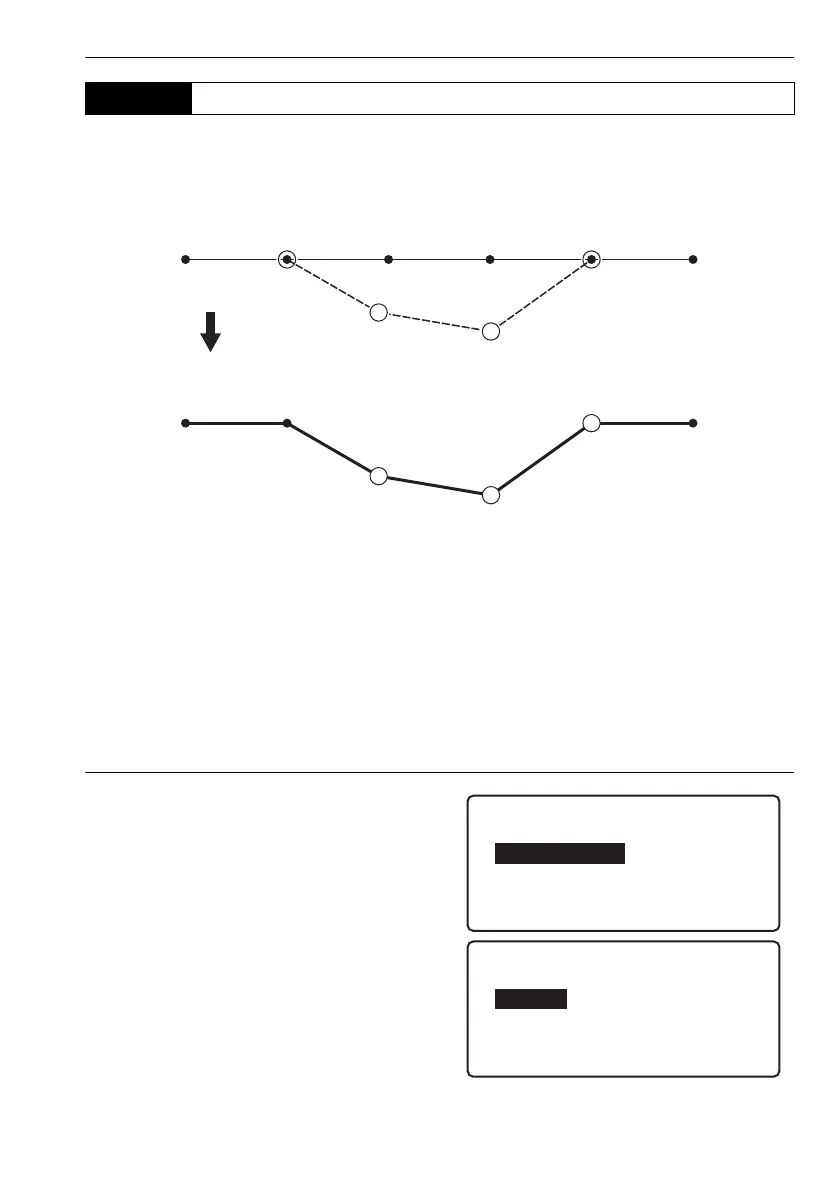

This function merges an existing route (the base route) with a reobserved section of that same route
(the reobserved route).
As shown above, the merged route uses the reobs. start point id from the base route and the reobs.
end point id from the reobserved route.

• With the exception of route ID and memo data, all route settings for a reobserved route shall be
identical to the route settings for the base route being reobserved. However, start bench mark
elevation and end bench mark elevation shall be automatically set to 0.0000m, and start bench
mark/end bench mark IDs shall be left blank (NULL). These settings cannot be changed.
PROCEDURE Selecting a route to reobserve
1. Select "Management" in <Menu>.
2. Select "Route" in <Management menu>.
14.4 Reobserved Route Merge
a1 a2
b1
b2
b3
b2
b3
b4
b4
a3 a4 a5 a6
a1 a2 a6
Reobs. start pt
Reobs. end pt
Reobserved route
Base route
Merged route
Menu
1.Meas
2.Management
3.Config
4.Calculation
Management menu
1.JOB
2.Route
3.Known point data
4.Simple meas. data
