23
6. SETTING UP THE INSTRUMENT
PROCEDURE Leveling on the screen
1. Turn the instrument on.
"7. POWER ON/OFF"

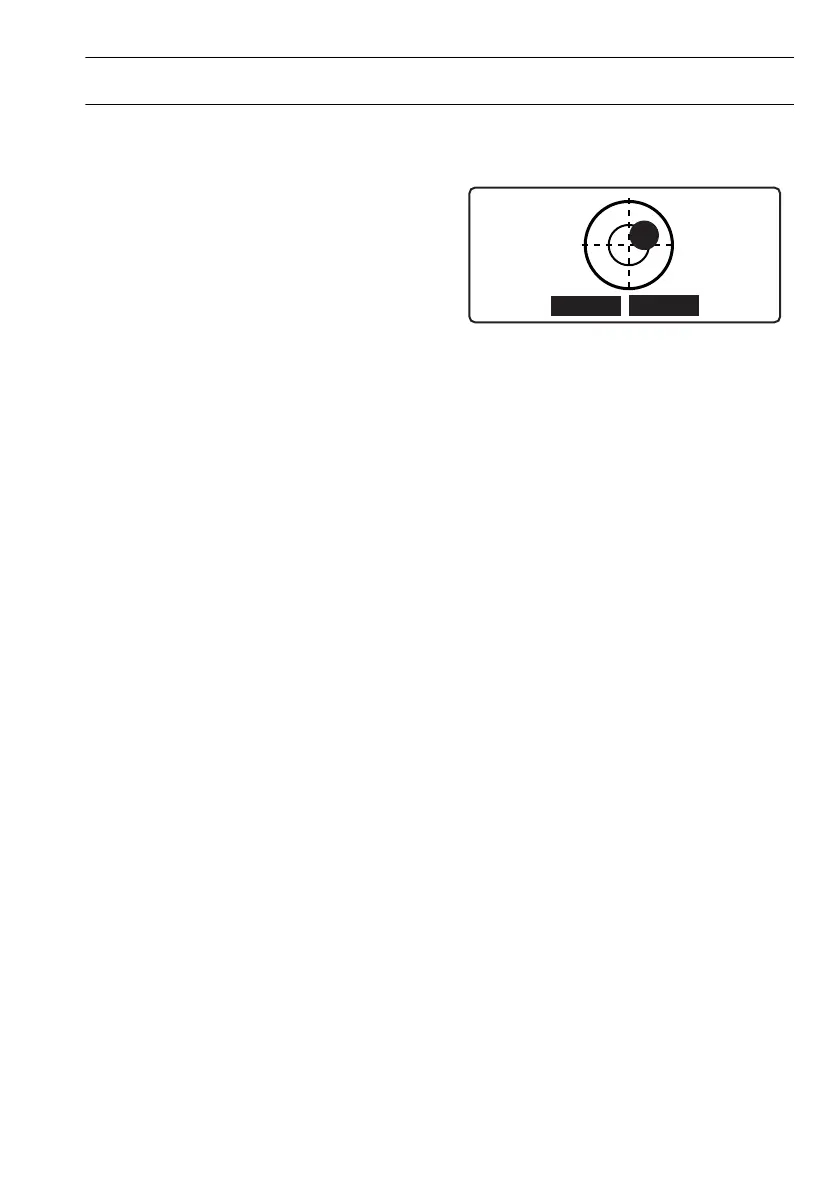

2. The screen shown at right is displayed.
3. Center “” in the circular level.
"6.2 Leveling PROCEDURE Leveling
with the Spherical head tripod/"6.2 Leveling
PROCEDURE Leveling with the Flat head
tripod"
“” indicates the bubble in circular level. The
range of the inside circle is 12' and the range of
the outside circle is 24’.
•Press [OFF]/[BEEP] to turn the audio tone
OFF/ON.
• Measurement cannot be performed when the Tilt screen is displayed.
• The tilt screen is automatically displayed on startup when "Tilt warn" in "Obs.condition" is set to
"Yes" and the instrument tilt exceeds the allowable range. Set to "No" to skip levelling on startup.
"Tilt warn." setting: "19.2 Instrument Configuration"
•Pressing [MENU] in the screen shown above returns the screen to <Menu> without completing
leveling. However, measurement cannot be performed until the instrument is levelled.
DL-501_E.book 23 ページ ２０１５年９月１７日 木曜日 午後１時２１分
