GR-5 Configuration
GR-5 Operator’s Manual
3-30

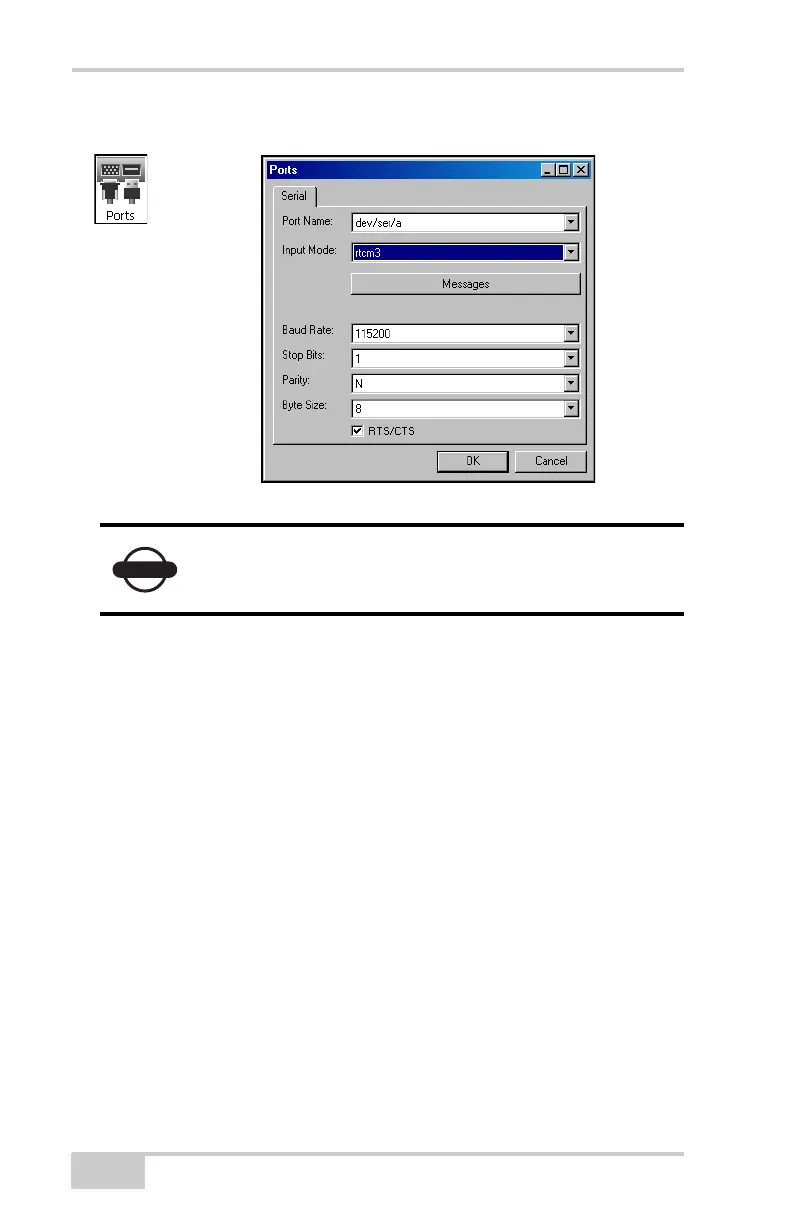

Figure 3-27. Ports Configuration
15. Click OK to save the settings and close the dialog box. Once the
receiver is configured, the configuration remains until changed
using TRU or by clearing the NVRAM. For more details on the
settings available for configuring receivers, refer to the TRU
Reference Manual.
16. For RTK Rover receivers, click the Status icon (Figure 3-19 on
page 3-21) to ensure the receiver obtains differential corrections.
Usually, the receiver will start to output the coordinates of the
antenna’s phase center along with the solution type within 10–30
seconds. However, radios may take as long as 60 seconds to
synchronize.
The Data Link tab reflects the status of the received differential
messages and contains the following information:
Data link quality in percentage
Time (in seconds) elapsed since the last received message
Total number of received correct messages (dependent on the
message type received)
NOTICE
For post-processed surveys, keep the default values
for these parameters.
