Introduction
GR-5 Operator’s Manual
1-24
The quick disconnect adapter (p/n 02-850905-01) connects to the
range pole for the receiver to slip into the top. Using the side clips, the
receiver can be quickly connected to/disconnected from the range
pole (Figure 1-13).

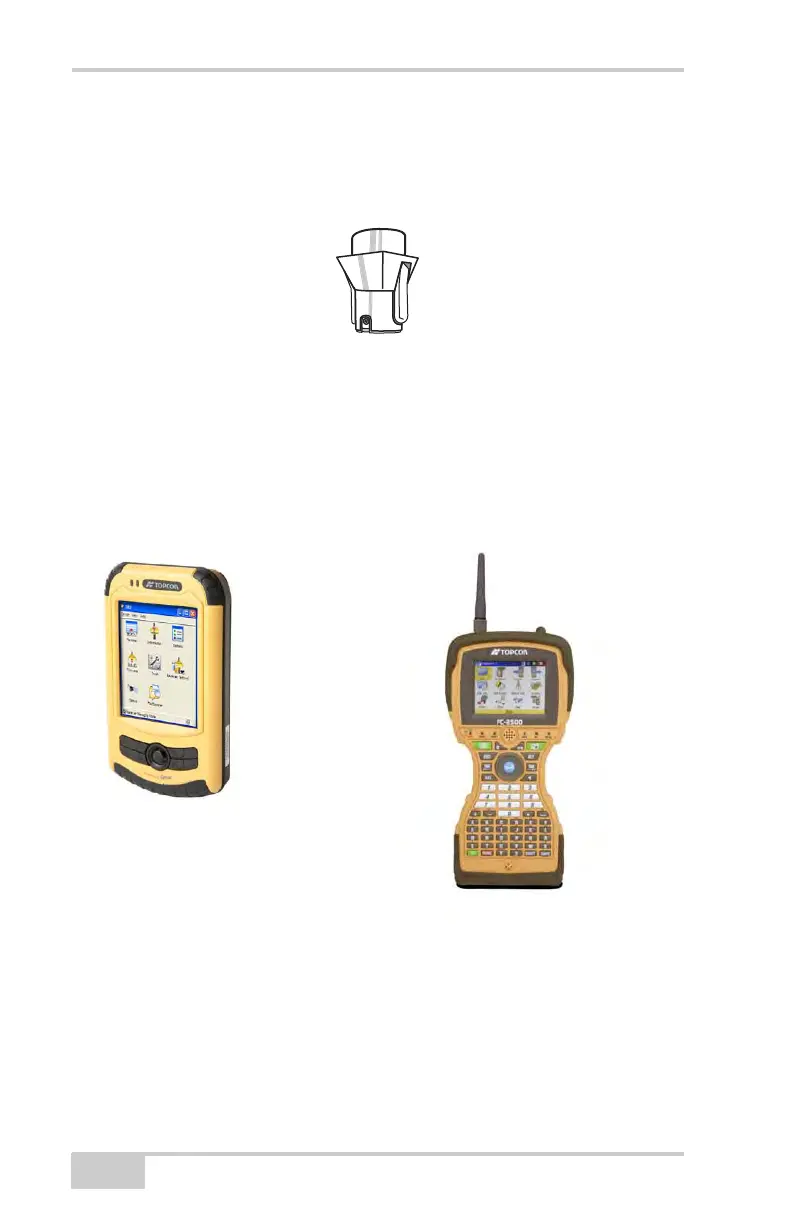

Figure 1-13. Quick Disconnect
A hand-held controller (Figure 1-14) allows the GR-5 Base and
Rover systems to be configured and monitored directly in the field.
TopSURV (field data collection software) and TRU (receiver
configuration and monitoring software) can be used on Topcon
controllers to configure and manage the receiver.
Figure 1-14. Hand-held Controller Examples
FC-25 FC-2500
