The ODU-to-alligator clips cable (p/n 14-008097-01LF) connects
the charging cradle or receiver to an auxiliary battery for powering
the receiver during survey operations (Figure 1-15).

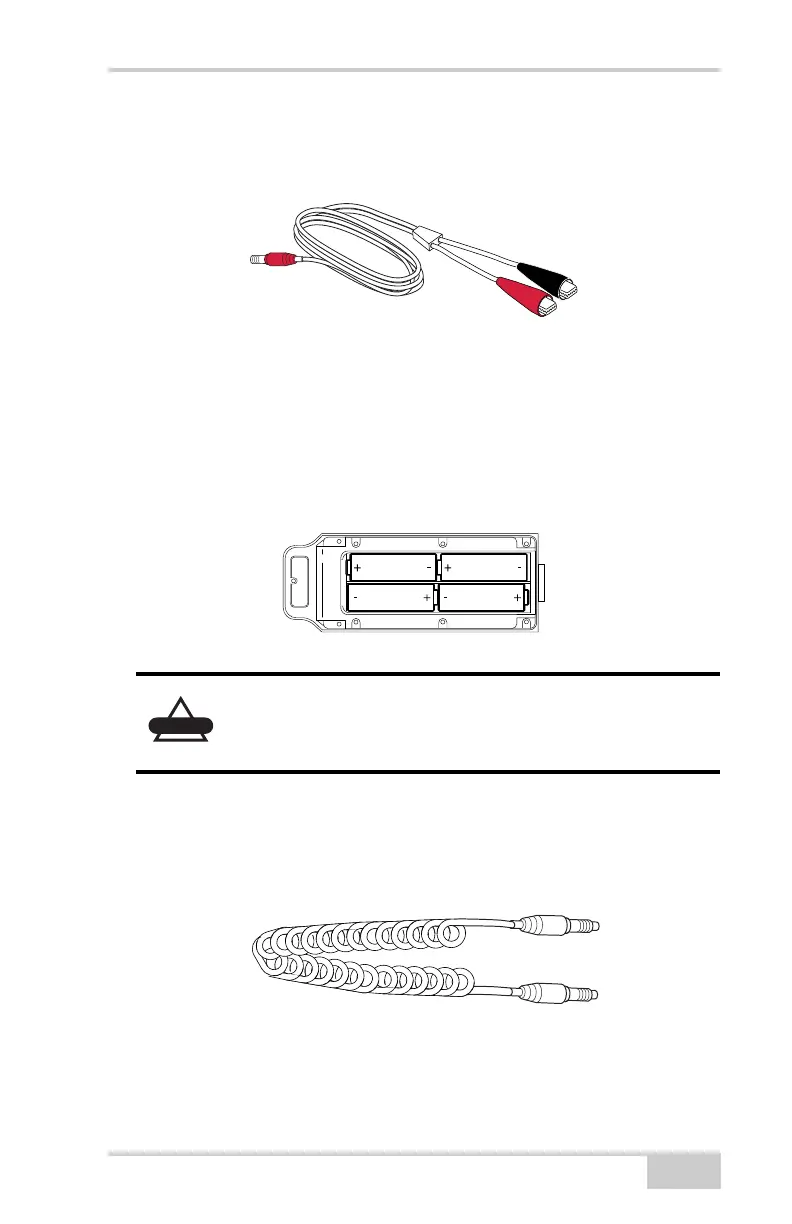

Figure 1-15. Auxiliary Power Cable – ODU-to-Alligator Clips
The AA battery pack (Figure 1-16) holds four AA batteries to
provide a portable backup power source for the receiver. Due to
variances in AA battery capacity, and the mode of the receiver and
type of modem, the amount of time the receiver is powered varies.
See “Assembling the AA Battery Shell” on page 2-17 for details on
how to attach the pack to the GR-5.
Figure 1-16. AA Battery Pack
Figure 1-17.
Cradle-to-receiver charging cable (p/n 14-008072-01 (1.5m long)
p/n 14-008072-02 (0.5 m long) Connects the receiver to the charging
cradle for external power (Figure 1-18).
Figure 1-18. Cradle-to-receiver Charging Cable
Do not use rechargeable AA batteries.
Do not use the AA battery shell when the radio
modem is in transmitter mode.
