Power Management
P/N 7010-1004
2-13
• Off – internal slot is not powered even if the receiver is
turned on
• Always – internal slot is powered even if the receiver is
turned off

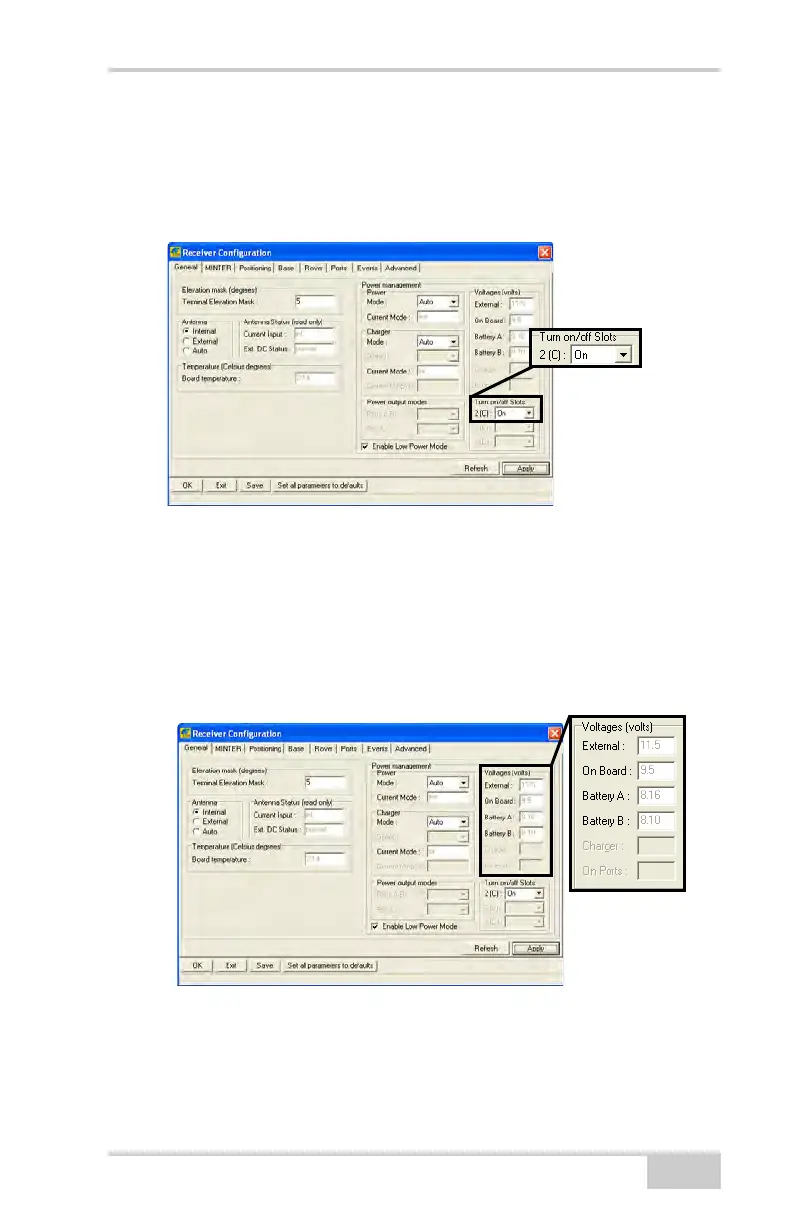

Figure 2-9. Select Power Output Modes – Ports and Slots
6. View the Voltages information (Figure 2-10 on page 2-13).
• External – displays the external power supply’s voltage
• On Board – displays the voltage drawn by the receiver board
• Battery A – displays the voltage of battery A
• Battery B – displays the voltage of battery B
Figure 2-10. View Voltages Information
