Managing the Radio Modem
P/N 7010-1004
3-15

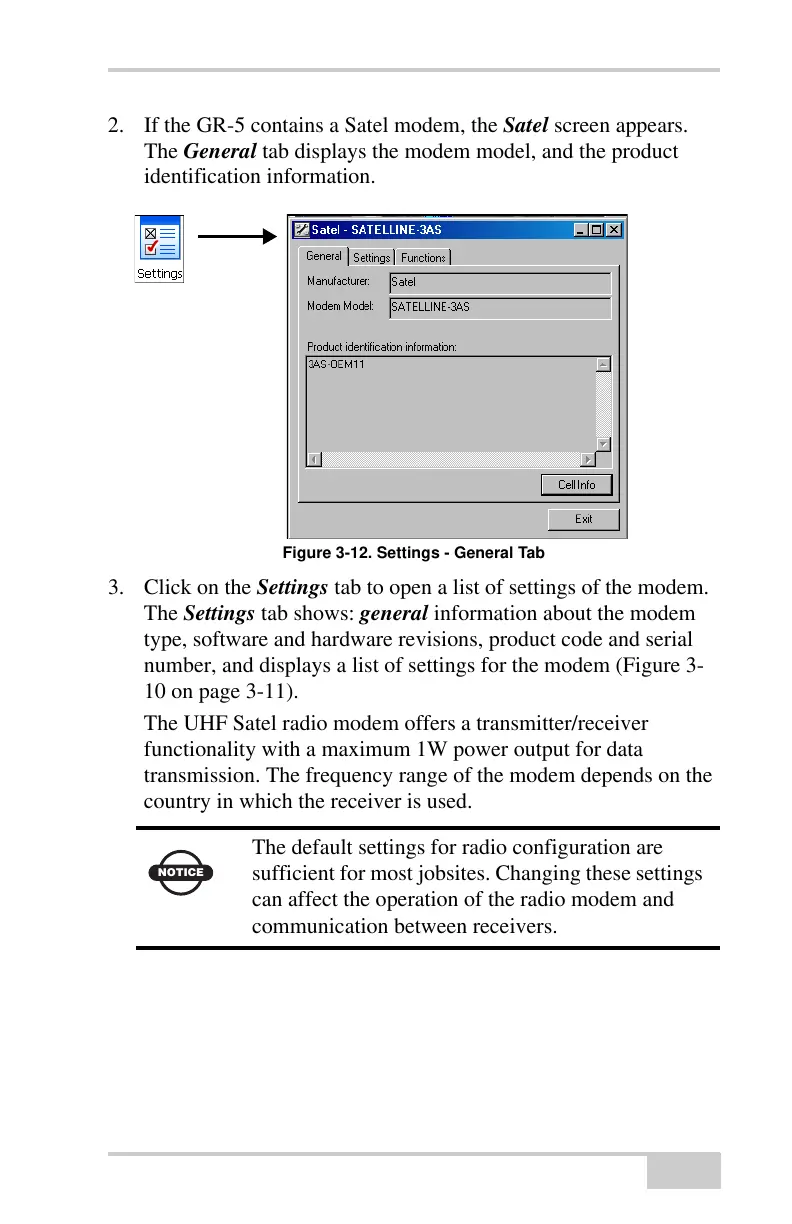

2. If the GR-5 contains a Satel modem, the Satel screen appears.
The General tab displays the modem model, and the product
identification information.
Figure 3-12. Settings - General Tab
3. Click on the Settings tab to open a list of settings of the modem.
The Settings tab shows: general information about the modem
type, software and hardware revisions, product code and serial
number, and displays a list of settings for the modem (Figure 3-
10 on page 3-11).
The UHF Satel radio modem offers a transmitter/receiver
functionality with a maximum 1W power output for data
transmission. The frequency range of the modem depends on the
country in which the receiver is used.
The default settings for radio configuration are
sufficient for most jobsites. Changing these settings
can affect the operation of the radio modem and
communication between receivers.
This page is intentionally left blank
