• The settings can be read-only (marked by the icon) or
changeable (marked by the icon). Clicking on the
corresponding line in the Value column opens a field to enter or
select from the drop-down list a needed value (see Figure 3-10).

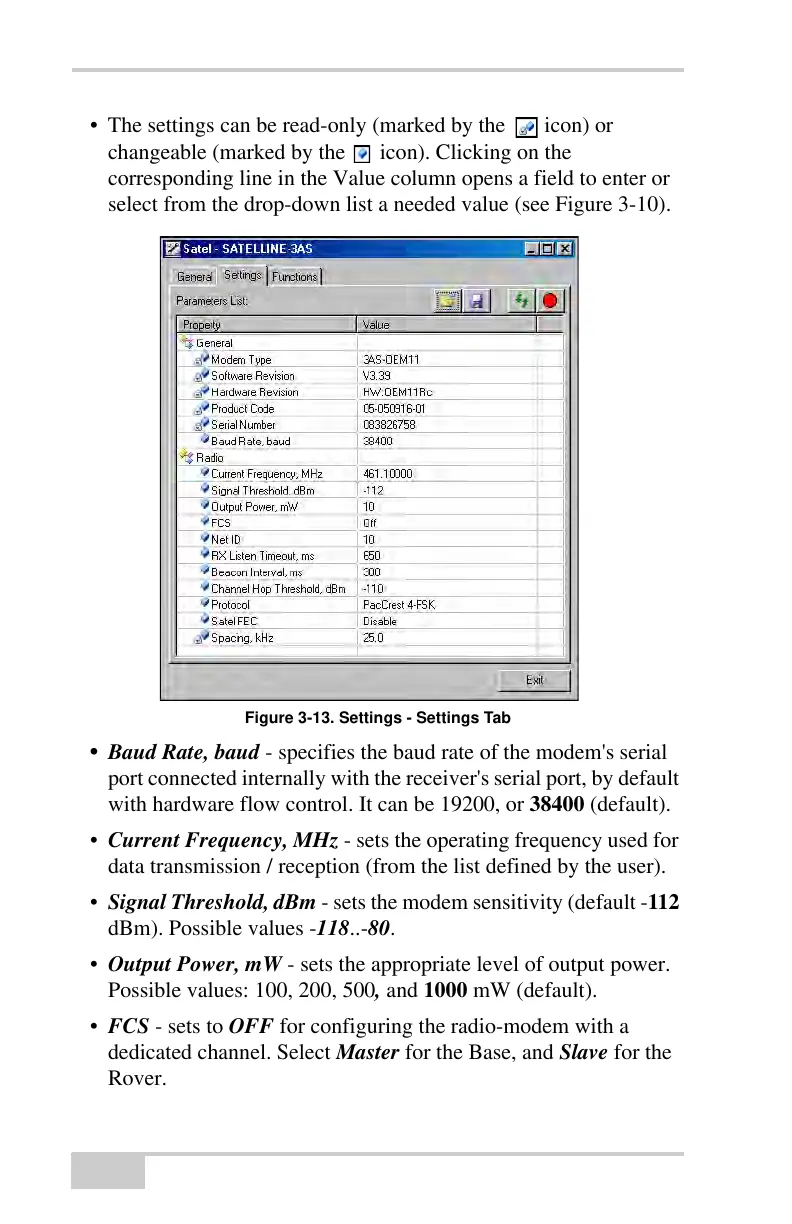

Figure 3-13. Settings - Settings Tab
• Baud Rate, baud - specifies the baud rate of the modem's serial
port connected internally with the receiver's serial port, by default
with hardware flow control. It can be 19200, or 38400 (default).
• Current Frequency, MHz - sets the operating frequency used for
data transmission / reception (from the list defined by the user).
• Signal Threshold, dBm - sets the modem sensitivity (default -112
dBm). Possible values -118..-80.
• Output Power, mW - sets the appropriate level of output power.
Possible values: 100, 200, 500, and 1000 mW (default).
• FCS - sets to OFF for configuring the radio-modem with a
dedicated channel. Select Master for the Base, and Slave for the
Rover.
