Topcon HiPer+ - USB Connector

Connector Specifications
P/N 7010-0526
C-11
USB Connector
The USB connector is a sealed receptacle, 5 pin, ODU p/n G80F1C-
T05QF00-0000 (Figure C-3).

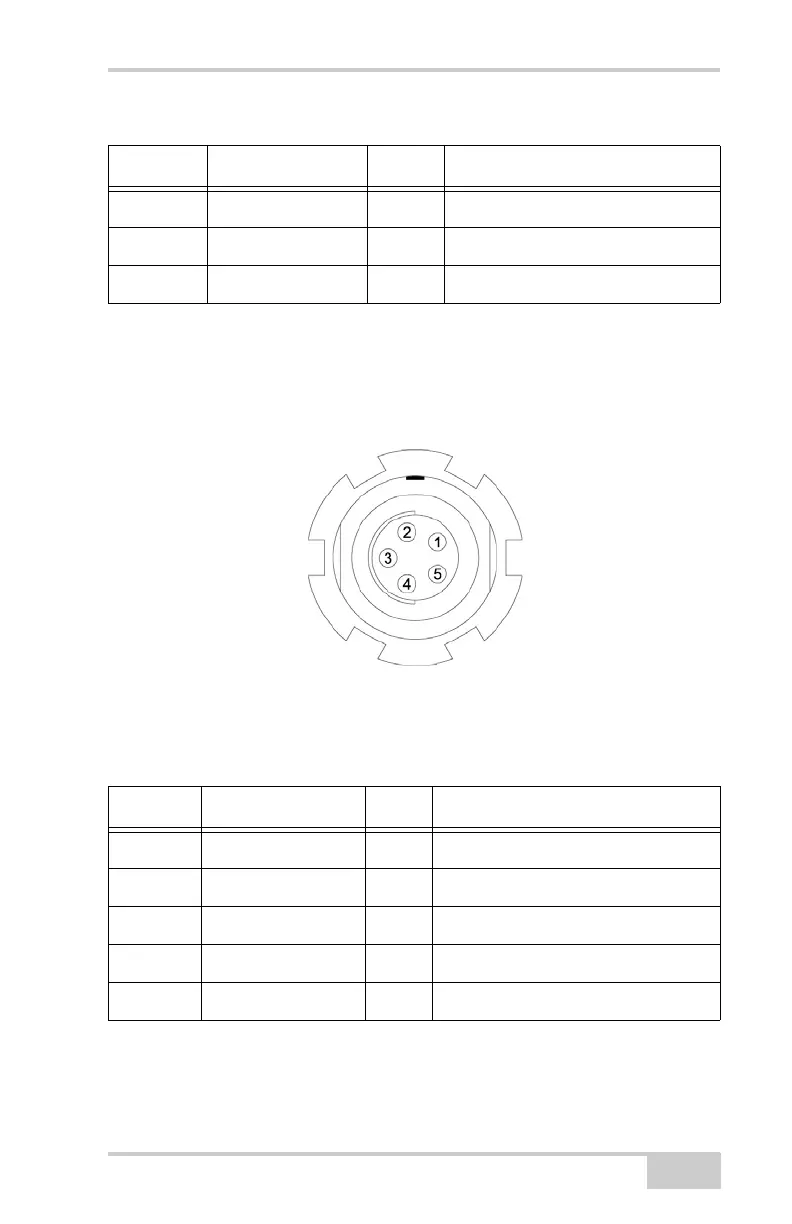

Figure C-3. USB Connector
Table C-6 gives the USB connector specifications.
5 RXD I Receive data
6 TXD O Transmit data
7 Not used
Table C-6. USB Connector Specifications
Number Signal Name Dir Details
1 Not used
2 USB_PWR P Bus power
3 GND - Ground
4 USB D+ I/O Data plus
5 USB D- I/O Data minus
Table C-5. RS232 Connector Specifications (Continued)
Number Signal Name Dir Details
