P/N 7010-0526
Appendix A
A-1
External Antenna Setup
For machine control applications, the HiPer+ receiver comes
configured with an external antenna port (Figure A-1).

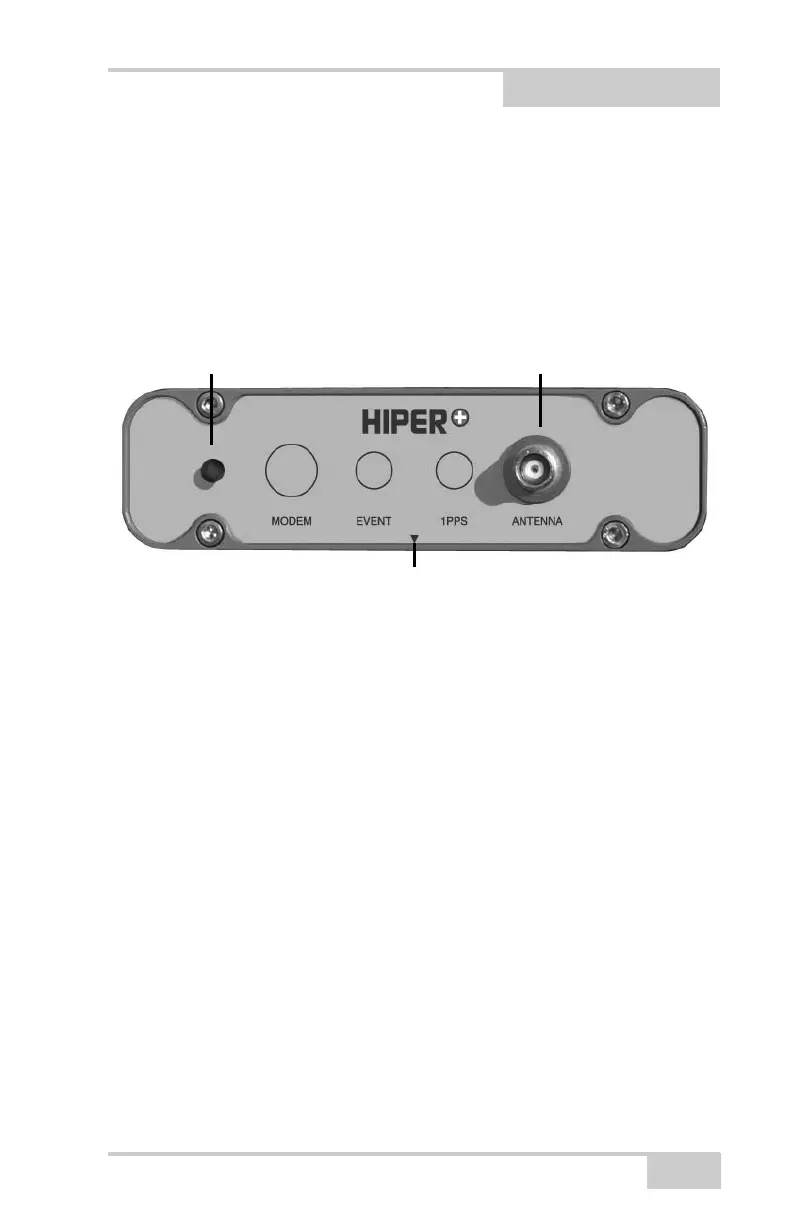

Figure A-1. HiPer+ with External Antenna Connector
1. Attach the antenna to a tripod or bi-pod and center it over the
point at which data will be collected.
2. Measure the antenna height. Antennas have two types of
measurements:
• Vertical – measured from the marker to the antenna reference
point (ARP) located on the bottom of the antenna at the base
of the mounting threads.
• Slant – measured from the marker to the lower edge of the
antenna’s slant height measure mark (SHMM).
MC-A1 antenna offsets are shown in Figure A-2 on page A-2.
Offset measurements for this antenna is given in Table A-1 on
page A-2.
Vent Plug
External Antenna Connector
Slant Height Measurement Mark
