External Antenna Setup
HiPer+ Operator’s Manual
A-2

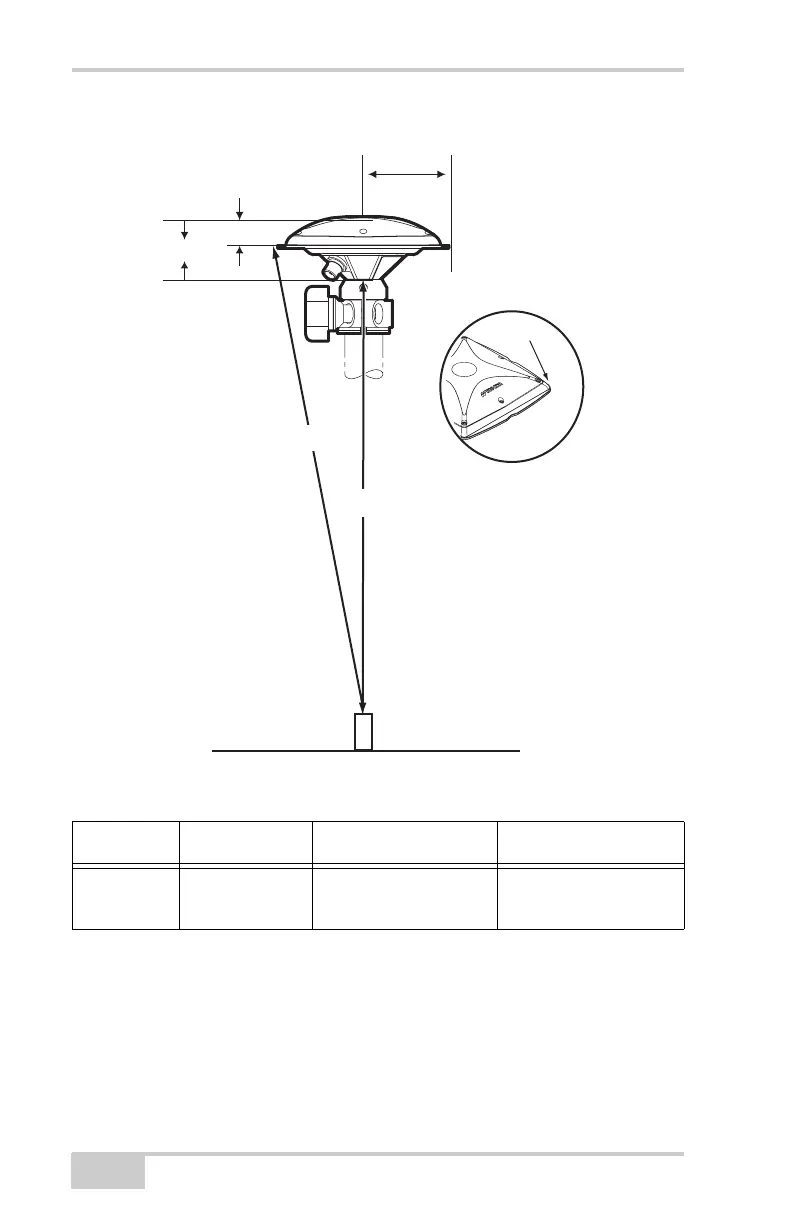

Figure A-2. MC-A1 Antenna Offset Measurements
3. Record the antenna height, point name, and start time in the field
notes.
4. Attach the flexible RF cable from the external antenna to the
antenna connector on the back panel of the receiver.
5. Continue with other setups or operations as needed.
Table A-1. Antenna Offset Measurements
Antenna Radius A, Vertical Offset C, Slant Offset
MC-A1 89.7mm 54.3mm (L1)
60.5mm (L2)
26.8mm (L1)
33.0mm (L2)
Phase Center
C
A
Cutting Edge
Radius
Measurement Point Point
SHMM
Slant Height
Vertical Height
