Other Accessories
Along with the following accessories, this package can include a 3-
meter measuring tape, an adjustable range pole, and a cable bag.
The Power Supply unit (p/n 22-034101-01) charges the internal
batteries when connected to a grounded outlet (Figure 1-5). This unit
converts the alternating current (AC) normally supplied from an
electrical outlet to a direct current (DC) used to charge the batteries
and/or power the receiver.
The power supply unit connects directly to the receiver. For details,
see the power related sections in Chapter 2.

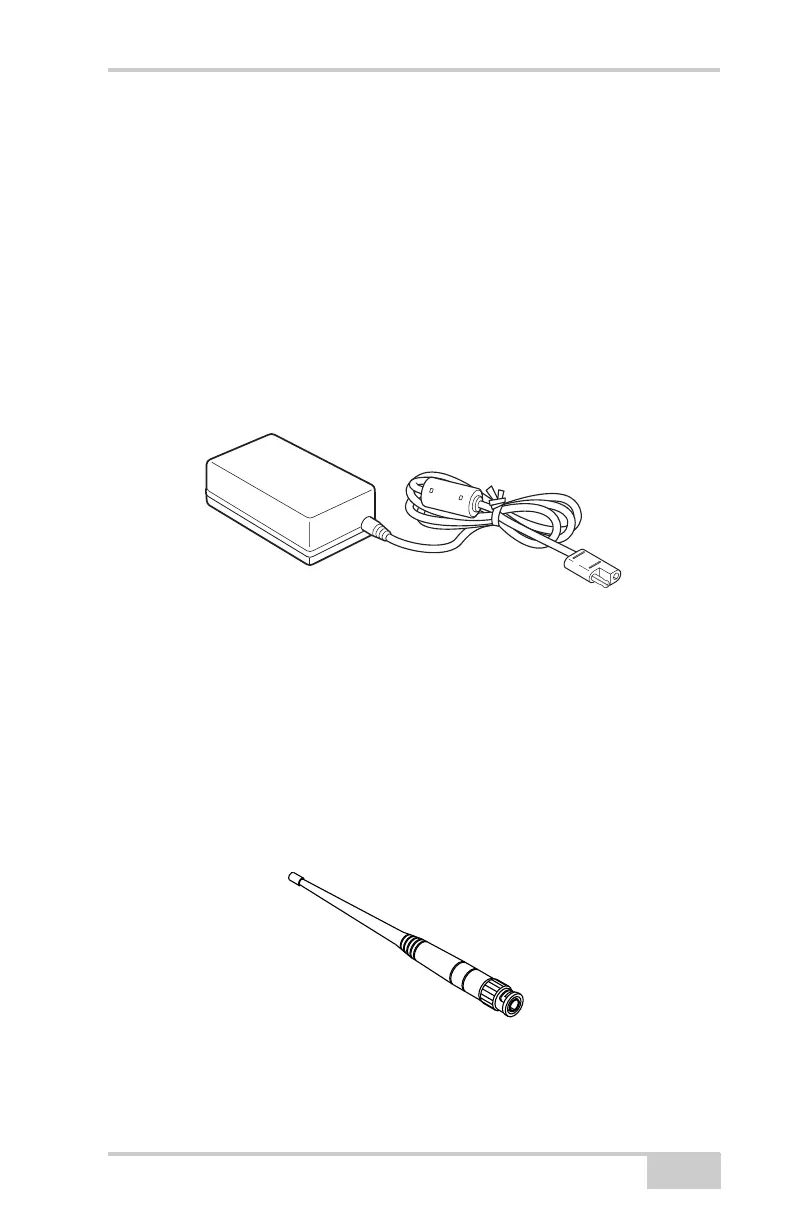

Figure 1-5. Power Supply Unit
The modem antenna includes support for both UHF or GSM radio
communication (Figure 1-6).
• The UHF modem antenna is a BNC RF connection and comes in
three versions: 400–420MHz (p/n 30-004101-03), 420–450MHz
(p/n 30-004101-02), or 450–470MHz (p/n 30-004101-01).
• The GSM modem antenna is a TNC RF connection and comes in
two versions: 900–1800MHz (p/n 30-030010-01), or
1800–1920MHz (p/n 30-040801-01).
Figure 1-6. UHF/GSM Modem Antennas
For more details on the accessories and package options available for
the Hiper+, contact your local Topcon dealer.
