Getting Acquainted
P/N 7010-0526
1-13
• PWR – The power input port to which an external power source
(+6 to +28 V DC) is connected and where the unit is charged.
• USB – Used for high-speed data transfer and communication
between the receiver and an external device.
• Slant height measure mark (SHMM).

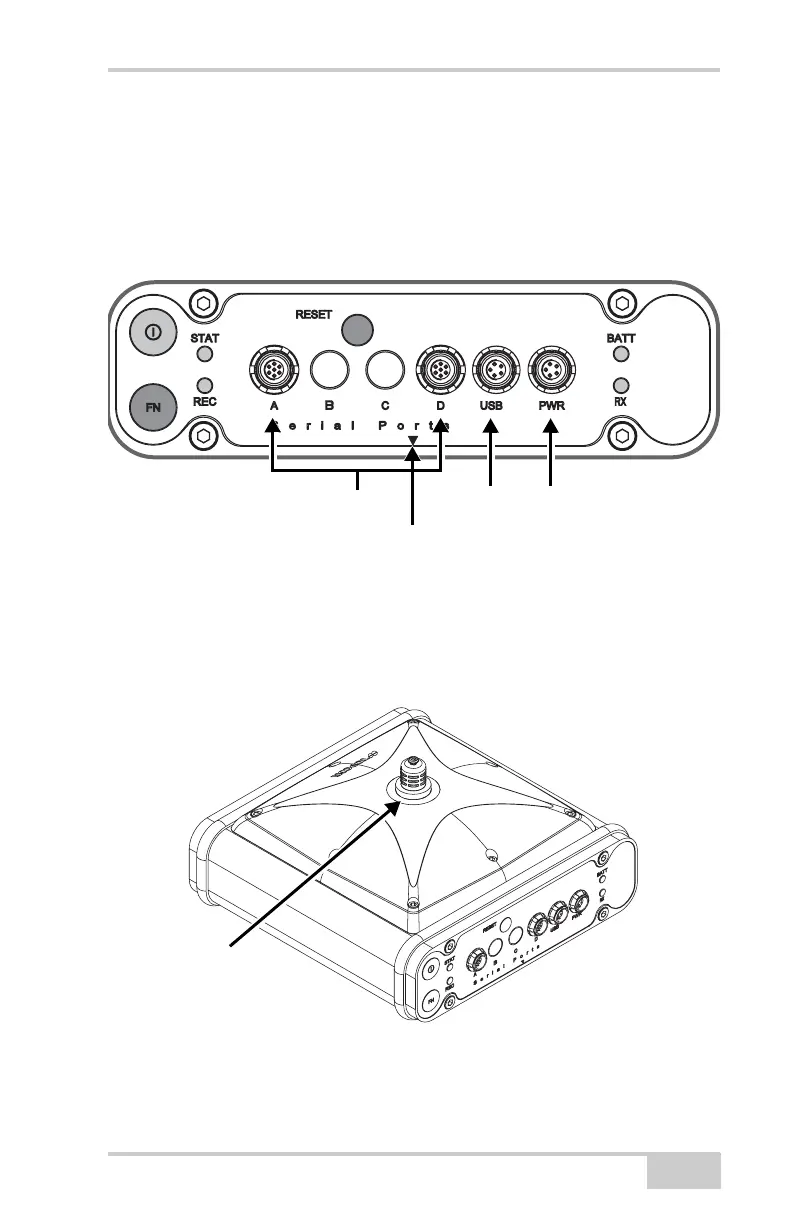

Figure 1-3. Receiver Ports
External Radio Antenna Connector
The antenna connector on the receiver’s radome is a BNC (for UHF)
or TNC (for GMS) connection (Figure 1-4).
Figure 1-4. Receiver Radome and External Antenna Connector
Slant Height Measure Mark
Serial Ports A–D USB Power
External
Antenna
Connector
