Paving Applications
Topcon Paver System Five Operator’s Manual
7-2
2. Position right tracker over lip of gutter and left Tracker past the
centerline on the base material (Figure 7-2).

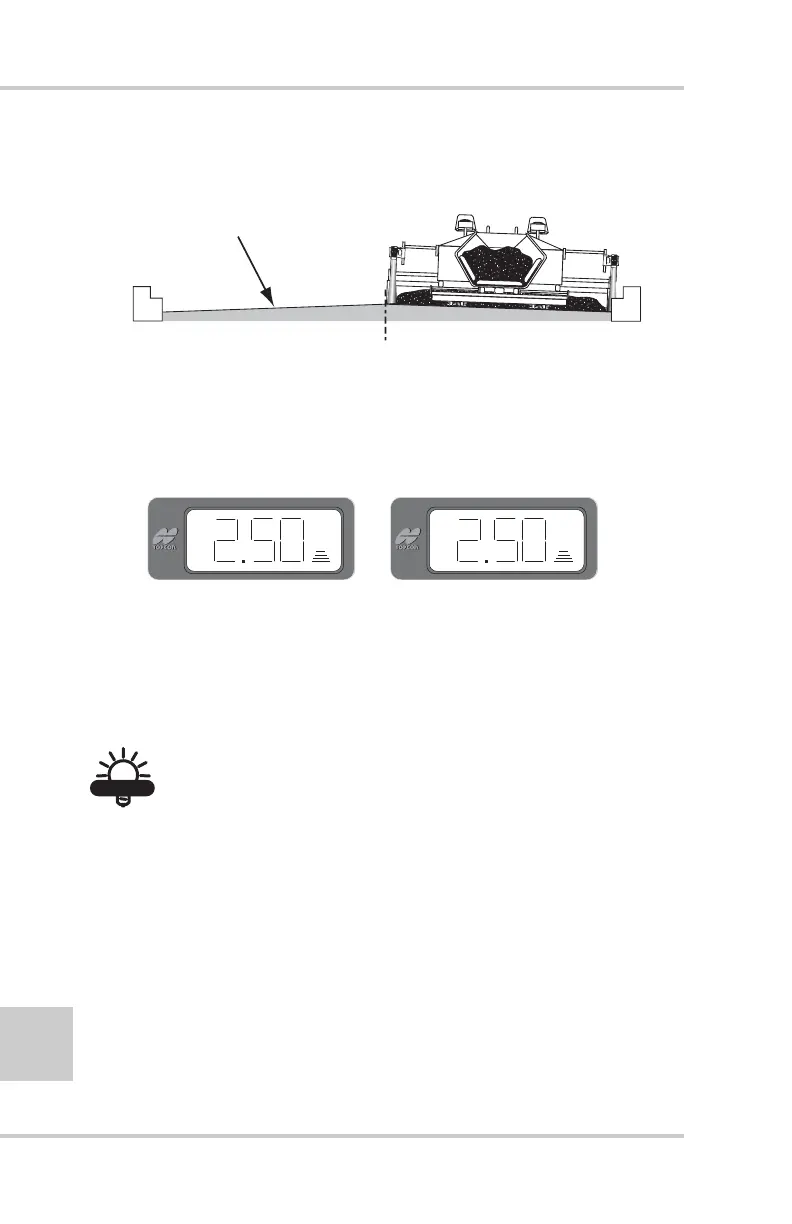

Figure 7-2. Positioning Tracker Over Gutter
3. Turn on the Control Boxes, then Survey and Set the displays to
read the depth of asphalt to be laid (Figure 7-3).
Figure 7-3. Control Box Displays – Depth of Asphalt
4. Put both Control Boxes in automatic mode and begin paving.
Check the depth of mat at centerline and verify joint matches at
lip of gutter. After compaction, make the necessary adjustments
at the Control Box.
TIP
TIP
If the road width varies, it will be easier to keep
the Tracker over the gutter if the Tracker is
mounted to the extension on the paver.
