1. From the Performance Menu, press the Auto button to
select Valve Offset. This will automatically activate the
value screen for Raise Offsets. The raise grade correction
display arrow illuminates, and the Control Box will begin
sending a raise correction signal to the valve (Figure 4-29).

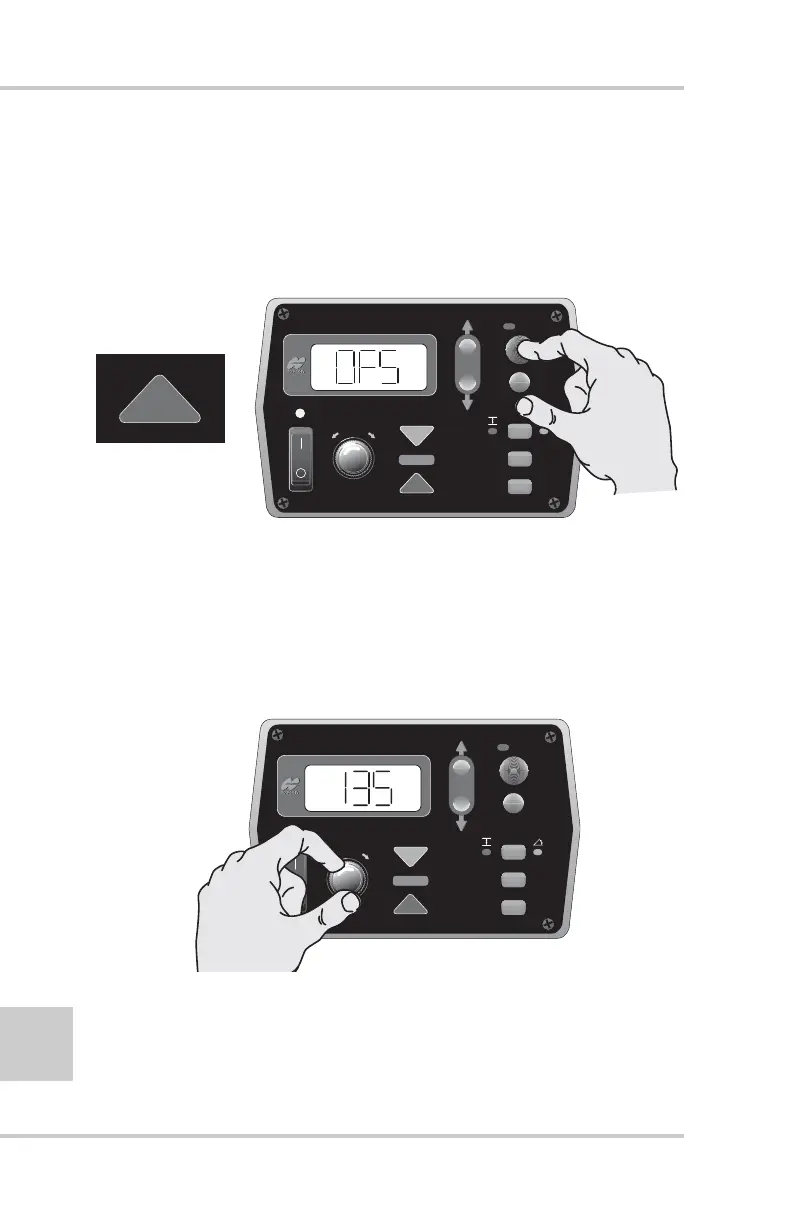

Figure 4-29. Select Valve Offset
2. Turn the Grade Adjustment Knob counter clockwise,
decreasing the valve offset value until the hydraulic
cylinder no longer moves. Then slowly rotate the Grade
Adjustment Knob clockwise until the hydraulic cylinder
just begins to move up (Figure 4-30).
Figure 4-30. Setting the Raise Valve Offset Value
3. Press the Auto button to store the Raise Offset Value
(Figure 4-31 on page 4-25).
