Performance Menu Settings
P/N 7010-0341 www.topconpositioning.com
4-25
Pressing the Auto button also switches the box to Lower
Offset. The Lower Grade Correction Display arrow will
illuminate and the Control Box will begin sending a lower
correction signal to the value (Figure 4-31).

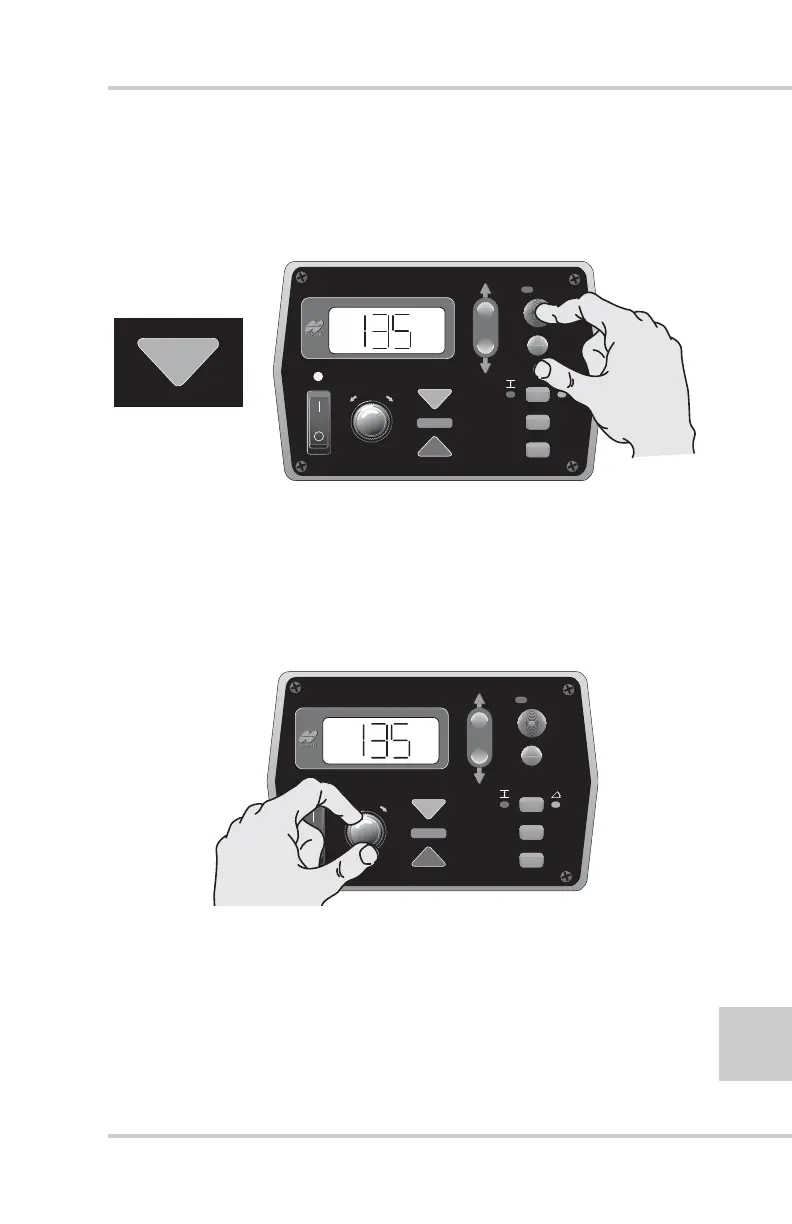

Figure 4-31. Storing the Raise Offset Value
4. Turn the Grade Adjustment Knob counter-clockwise,
decreasing the valve offset value until the hydraulic
cylinder no longer moves. Then slowly rotate the Grade
Adjustment Knob clockwise until the hydraulic cylinder
just begins to move down (Figure 4-32).
Figure 4-32. Setting the Lower Valve Offset Value
5. Press the Auto button to store the lower valve offset value
and return to the Performance Menu.
6. Rotate the Grade Adjustment Knob to access another item
in the Performance Menu, or press the Set/Menu button to
exit.
