COMPONENTS
CONTROL PANEL COMPONENTS (IN TONO/PACHO MEASUREMENT MODE)
ID button...............................................Input the patient ID (up to 13 characters) and operator ID (up
to 13 characters). However, if no patient ID is inputted, the
patient No. of each patient is allocated automatically.
As for an operator ID, the input column may not be displayed
by setup. (See page 91)
Measurement mode button.......................Selects a measurement mode from TONO (Ocular pressure
measurement) and T/P. (Ocular pressure and Cornea thick-
ness measurements.)
R button/L button.............................Selects the right/left eye. By tapping the button, the main
body moves to the selected direction. The selected button is
framed in orange. The layout where the R/L button is dis-
played reverses according to the position of the control
panel.
Up/down button for chinrest ............Moves the chinrest up/down.
Air check/End button.................................Displayed under Auto mode: Selects Air check or End opera-
tion. Air check operation checks that the measurement sys-
tem of the instrument operates properly. End operation is to
move the chinrest and measuring head to the measurement
last position.
PatientID
PatientID
/3
/3
/3
/3
/3
/3
/3
/3
OPCON
ARO
MODE
T/P
Pleasetouch
pupilonthescreen.

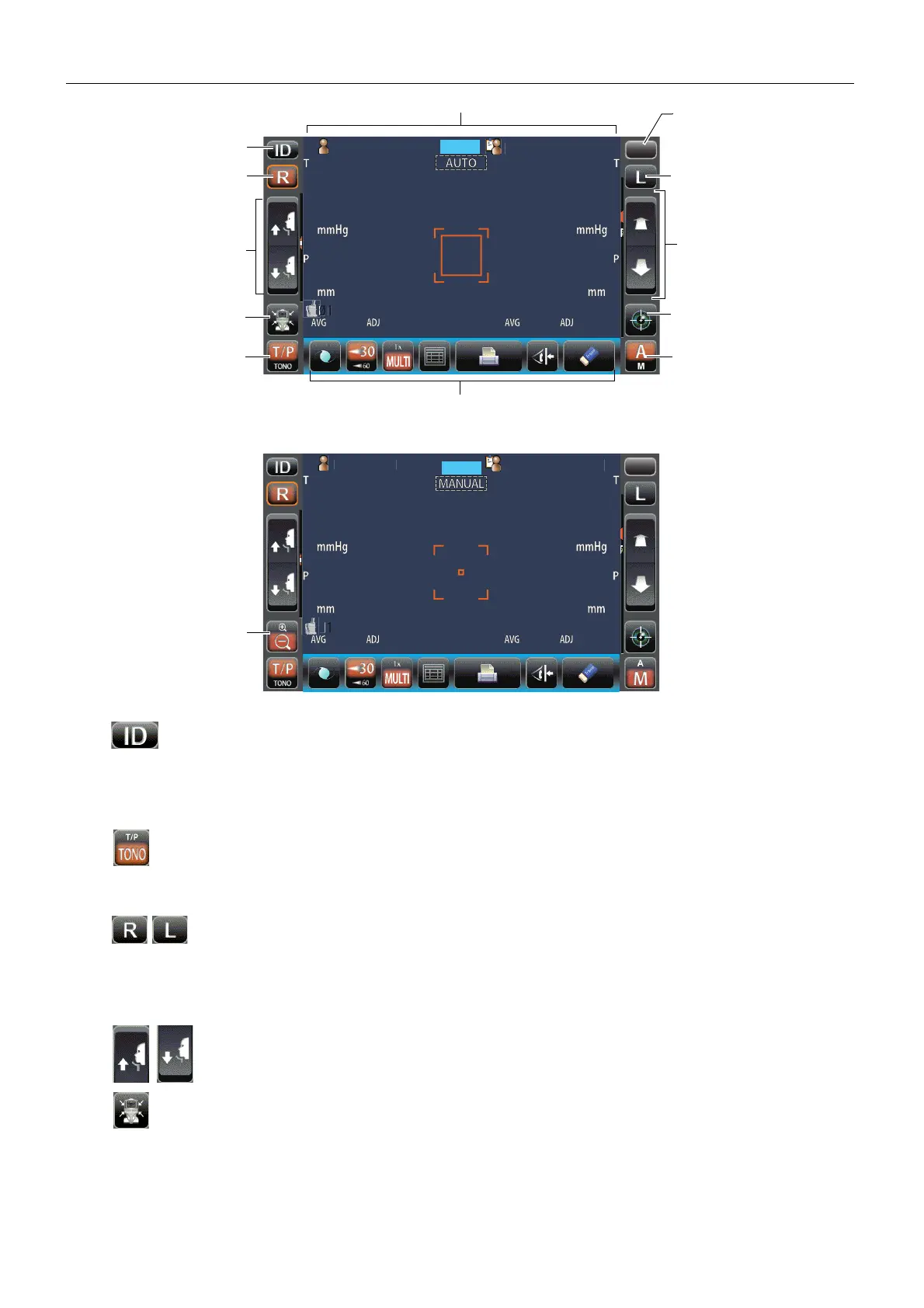

Measurement mode button
Start button
MODE button
Up/down button for chinrest
Function button
R button
L button
Display
Measuring head
forward/backward button
Auto/Manual button
ID button
Air check/End button
AUTO MODE
PatientID
PatientID
1
OPCON
ARO
TOPCONTAROU
T/P
MODE
Focusand
Touchameasurepoint
