Topcon TRK-2P User Manual

29
PREPARATIONS
RECOVERY FROM POWER SAVE STATUS
This instrument adopts the power save system for saving electric power. When the machine is not
operated for a set time, the control panel becomes a screensaver.
1 Tap the control panel.
In a few seconds, the measurement screen is displayed and measurement is enabled.
ADJUSTING THE CONTROL PANEL POSITION

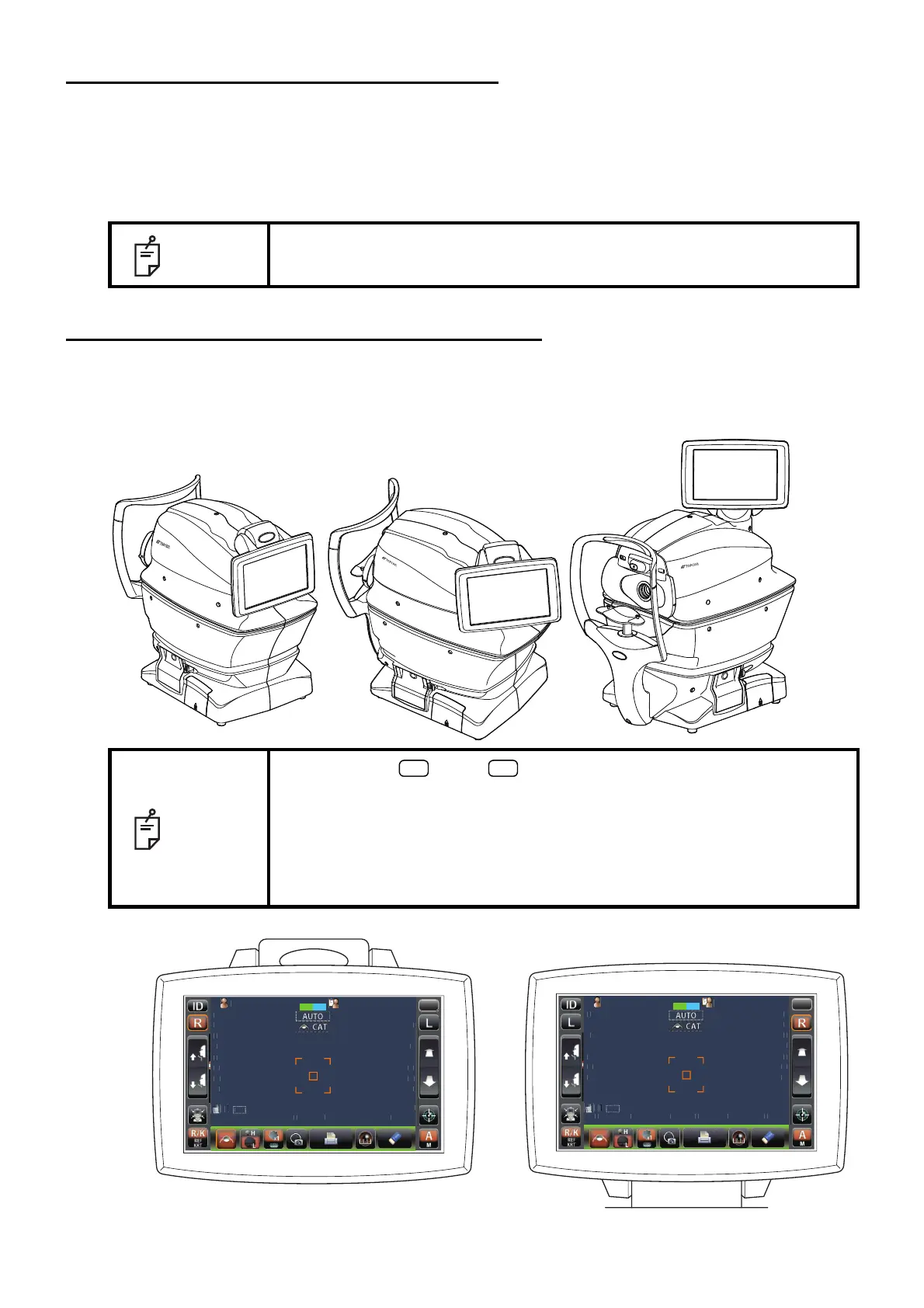

The control panel may be positioned by swinging and tilting the monitor to your desired position.
Touching the control panel controls operations including chinrest movements, alignment and mea-
surement.
NOTE
The time to start the power save status can be changed at "Auto power
save" of "Common" in the "Initial". (See page 85).
NOTE
• The layout of button/ button is reversed according to the position
of the control panel.
• The moving direction by tapping is changed according to the position of
the control panel.
• The moving direction when pushing continuously on control panel
changes according to the "XZ MOTOR direction". of "Common" in the "Ini-
tial". (See page 85)
